PE06 Φ25*10 Sewage Treatment Bio Plastic MBBR Water Filter Media

PE06 Φ25*10 Sewage Treatment Bio Plastic MBBR Water Filter Media

  • PE06 Φ25*10 Sewage Treatment Bio Plastic MBBR Water Filter Media
  • PE06 Φ25*10 Sewage Treatment Bio Plastic MBBR Water Filter Media
  • PE06 Φ25*10 Sewage Treatment Bio Plastic MBBR Water Filter Media
  • PE06 Φ25*10 Sewage Treatment Bio Plastic MBBR Water Filter Media
PE06 Φ25*10 Sewage Treatment Bio Plastic MBBR Water Filter Media
Product Details:
Place of Origin: China
Brand Name: Changier
Model Number: pe06
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: woven bag,0.1cbm/bag
Delivery Time: 7-15 days
Payment Terms: L/C, T/T
Supply Ability: 15CBM/DAY
Contact Now
Detailed Product Description
Material: 100% Virgin HDPE Type: PE06
Color: White Usage: Water Treatment
Service Life: >15 Years Membrane-forming Time: 3-15 Days
Spec: Φ25*10 Hole Numbers: 19
High Light:

PE06 MBBR Filter Media

,

HDPE MBBR Filter Media

,

19 hole MBBR Filter Media

PE06 Sewage Treatment Bio Plastic MBBR Filter Media



Product Description



Biofilm reactors are divided into fixed bed and flow bed. In the fixed bed, the biofilm carrier is fixed. In the traditional sewage treatment system, the main technology is the fixed bed biofilm technology. However, there are some problems in the traditional fixed bed biofilm process, such as less effective contact between microorganisms and sewage, easy blockage of filter material, periodic back washing, and difficult replacement of fixed packing and aeration equipment under packing. In recent years, the performance and stability of MBBR have been improved continuously, which has become an important technology of sewage treatment.



It not only integrates the advantages of activated sludge process and biofilm process, but also overcomes the disadvantages of both. It has the advantages of high processing capacity, low energy consumption, no blockage, compact structure, no sludge reflux, simple maintenance and management.



MBBR bio filter is a new activated bioligical carrier, which adopts the scientific formula and integrate various microelements favorable for microorganisms' apposition growtteria live outside, so that each carrier can be a micro reactor, it makes the reaction of nitrification and denitrification coexist.

PE06 Φ25*10 Sewage Treatment Bio Plastic MBBR Water Filter Media 0

Technology Parameter



Model

PE06
PE08
PE09
PE10
Spec.
mm
Φ25*10
Φ5*10
Φ15*15
Φ25*4
Hole Numbers
pcs
19
8
40
64
Efficient Surface
m2/m3
>800
>3500
>900
>1200
Density
g/cm3
1.02-1.05
1.02-1.05
0.96-0.98
0.96-0.98
Packing Numbers
pcs/m3
>97000
>2000000
>230000
>210000
Dosing Ratio
%
15-65
15-70
15-65
15-65
Membrane-forming Time
days
3-15
3-15
3-15
3-15
Life-span
year
>15
>15
>15
>15



Features



1.Large effective specific surface area, strong resistance to shock loads.

2.No need for a return activated sludge stream, non-blocking performance

3.Suitable for Anoxic-aerobic -anaerobic

4.High efficiency decarburization, remove ammonia nitrogen, improve water quality

5.Long service life

6.No need to modify the processing pool, easy to operate, directly addition

7.Self-regulating and responds to load increases

8.Maximum capacity on small footprint, extremely high loading and high efficiency results



Advantages of Bio Filter Media



1) High relative surface area

2) Lightweight zero buoyancy

3) Self cleaning

4) Ideal surface for bio filter to multiply

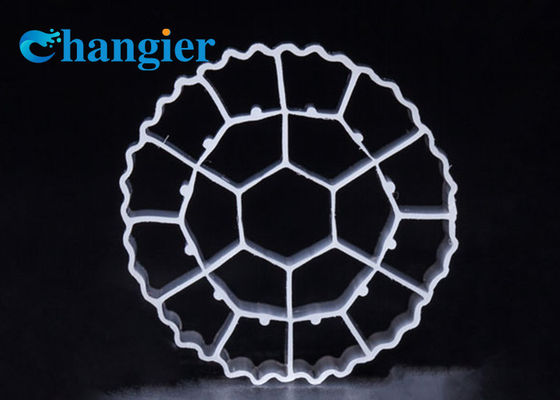

Products real shot



PE06 Φ25*10 Sewage Treatment Bio Plastic MBBR Water Filter Media 1

PE06 Φ25*10 Sewage Treatment Bio Plastic MBBR Water Filter Media 2



Packing


Package: Woven bag, 0.1CBM/ bag. We can also put 1CBM/bag, but this bigger bag needs extra cost $6/bag. Package can at customers' requirements.

PE06 Φ25*10 Sewage Treatment Bio Plastic MBBR Water Filter Media 3

FAQ


1.a. What's your production ability for one month?

b. We can product 2000 cubic meters for one month .

2.a. What's your MOQ?

b. 1 Cubic meter is available .

3.a. What's your shipping port?

b. Shanghai ,China
