High Oxygen Fine Bubble Membrane Tube Diffuser 90*1000mm Anti clogging

Name: High Oxygen Fine Bubble Membrane Tube Diffuser 90*1000mm Anti clogging
Brand: Changier
SKU: Silicone-D90
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (178 reviews)

Product Details:

Place of Origin:	China
Brand Name:	Changier
Certification:	CE/ISO9001
Model Number:	Silicone-D90

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Carton Box
Delivery Time:	7 days after payment
Payment Terms:	L/C, T/T
Supply Ability:	10000 Sets Per Month

Contact Now

Detailed Product Description

Material:	Silicone Membrane+ABS	Size:	Dia 90*1000mm
Weight:	2KG	Bubble Size:	Under 3mm
Color:	White	Temperature:	0-100℃
High Light:	Membrane Tube Diffuser 1000mm , Membrane Tube Diffuser Anti Clogging , fine bubble tube diffuser 1000mm

Epdm/ silicone Aeration Diffuser High Efficiency Fine Bubble Tube Diffuser

High oxygen fine bubble membrane tube diffuser

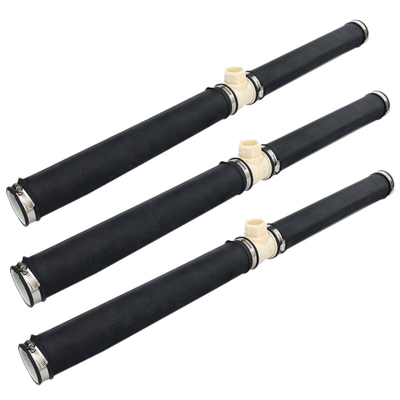

Fine Bubble Tube Diffuser can be connected on one side or in pairs to different rectangular and round tubes (ABS material) with the appropriate adapter. The membranes are manufactured with premium quality EPDM material and are available with fine or coarse-bubble perforation.The support tubes(ABS or PVC material)can be reused when membranes are replaced. The units offer maximum performance at minimum cost and require minimum maintenance.

Description

High Oxygen Fine Bubble Membrane Tube Diffuser 90*1000mm Anti clogging 0

The membranes are manufactured with premium quality silicone material and are available with fine or coarse-bubble perforation.The support tubes(ABS or PVC material)can be reused when membranes are replaced. The units offer maximum performance at minimum cost and require minimum maintenance.

Silicone memberane ABS tube air diffusion for sewage disposal, which is used to transfer air and with that oxygen into sewage or industrial wastewater. Oxygen is required by microorganisms in the water to break down the pollutants. Sinta air disc fine bubble diffuser series combines effective design, how installation costs, reliability and high performance in intermittent and continuous aeration processes. Special designed the slits cut opining, patters and spacing between the slits for high oxygen transfer and longtime operation.

Advantage

1. High oxygen transfer efficiency

2. Low cost of total ownership

3. Anti-clogging, corrosion resistant

4. Ease of installation,2 minutes for one diffuser

5. Maintenance-free design, 8 years service life

6. SILICONE membrane with excellent performance

High Oxygen Fine Bubble Membrane Tube Diffuser 90*1000mm Anti clogging 1

Technical Data

Material	EPDM		Silicone		TPU
Specification	D65-1000	D90-1000	D65-1000	D90-1000	D65-1000	D90-1000
Supporting BodyDiameter(mm)	63	90	63	90	63	90
Membrane Diameter(mm)	65	92	65	92	65	92
Membrane Thickness(mm)	2±0.1	2±0.1	1.6±0.1	1.6±0.1	0.6+0.1	0.6+0.1
Bubble Diameter(mm)	1~3	1~3	1~3	1~3	1~3	1~3
Air Flow Range(Nm3/h)	2~12	3~18	2~12	3~18	2~12	3~18
Normal Air Flow(Nm3/h)	8	12	8	12	8	12
Max Working Temperature(℃)	80	80	100	100	100	100

Product Description

fine bubble diffuser has been manufactured in the aeration of industrial wastewater, municipal sewage, domestic septic tank, food process like fermentation, fish farm or shrimp farm aeration. The wastewater treatment of activated sludge and contact aeration process and aquarium will all need high Oxygen transfer rate or Oxygen transfer efficiency, OTE. and low pressure loss by the membrane. The reinforced EPDM can continuously create fine bubble from slots on the EPDM membrane of disc type or tube type diffuser. The expected duty life may be over 5 years without tearing or bursting. There are other material selections of self-sink silicon rubber membrane, ceramic diffuser, air stone, and coil looking diffuser. There are also course bubble air diffuser for application of liquid mixture. The diffuser can be used for roots blower, ring blower and linear air pump. The fine bubble diffuser also has advantage of much energy reduction.

We offer OEM manufacturing with high reliability and stability of performance, efficient and effective satisfaction of your

client. Let our diffuser be the best choice of your solution.

APPLICATIONS

* Municipal wastewater treatment.

* Industrial wastewater treatment.

* Clean water treatment.

* Sludge stabilization.

* Wastewater ozone diffusion.

* Aeration of fish ponds.

* Aeration of streams and lakes.

Model	BQ-170	BQ-215	BQ-270	BQ-330
Bubble Type	Coarse Bubble	Fine Bubble	Fine Bubble	Fine Bubble
Size	6 inch	8 inch	9inch	12 inch
MOC	EPDM/Silicone/PTFE—ABS/Strengthened PP-GF
Connector	3/4''NPT male thread
Membrane Thickness	2mm	2mm	2mm	2mm
Bubble Size	4-5mm	1-2mm	1-2mm	1-2mm
Design Flow	1-5m3/h	1.5-2.5m3/h	3-4m3/h	5-6m3/h
Flow Range	6-9m3/h	1-6m3/h	1-8m3/h	1-12m3/h

EPDM membrane:

In municipal wastewater and most industrial wastewater, it can retain its physical properties for a long time, resist tearing,

remain in shape after years of use, and produce tiny bubbles.Not suitable for solvent, grease, grease, and high concentration of metal salts.Silicone membrane:

With stable material, the membrane will not harden or shrink. It has good resistance to organic solvent and grease sewage, but its

physical property is not as good as EPDM. It is suitable for industrial wastewater with high oil content and high temperature.

Specification

fine aeration bubble air tube diffuser Membrance fine bubble diffuser features a unique split pattern and slit shapes, which can disperse air bubbles in an extremely fine and uniform pattern for high oxygen transfer efficiency. A much highly effective and integrated check valve enables the aeration zones to be easily shut down for air-on/air-off applications. EPDM fine bubble membrane diffusers are constructed with premium quality EPDM membranes engineered for superior product life, operational flexibility and maximum oxygen transfer efficiency. The units are ideally suited for continuous or on/off applications and require minimal maintenance for long-term performance

Lifting cyclone aerator The liftable cyclone aerator is a type of aeration device developed in recent years. It is mainly composed of four parts: outer cylinder, intake pipe, backflow plate and wedge-shaped structure. It is made of nylon 66 + 30% glass fiber (PA66 + 30% GF). It has super mechanical properties and corrosion resistance. At the same time, the device also has the advantages of high dissolved oxygen efficiency, small pressure loss, strong mixing force, no blockage, no sludge accumulation at the bottom of the tank, no maintenance, intermittent operation, long life, etc. it is designed by Environmental Engineering College of Tokyo University and Seoul University of Korea According to the application effect of thousands of enterprise users at home and abroad for many years, the energy consumption of lifting cyclone aerator is reduced by more than 25% compared with conventional fixed spiral aerator, free flow aerator and perforated tube aerator. It is especially suitable for the new expansion projects of printing and dyeing, papermaking, chemical and other enterprises and industrial wastewater treatment plants and the transformation of old aeration tanks Objective.

Rotating mixing aerator The multi-layer spiral cutting is adopted in the rotating mixing aerator for oxygen aeration. When the air enters the aerator, the air first passes through the two-layer spiral cutting system, and then enters the multi-layer zigzag air distribution head at the lower layer after cutting. The multi-layer cutting makes the air bubbles cut into micro bubbles, greatly improving the utilization rate of oxygen, with the characteristics of uniform air distribution and high oxygen charging efficiency.
