Protect Water Resources For Our Planet

|
| Place of Origin: | China |
| Brand Name: | Changier |
| Certification: | CE/ISO9001 |
| Model Number: | Silicone-D200 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton Box |
| Delivery Time: | 7 days after payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000Pcs Per Month |
| Material: | Silicone Membrane+PP+ABS | Size: | 215mm |
|---|---|---|---|
| Bubble Diameter: | Between 1~3mm | Application: | Waste Water Treatment |
| Plastic Tray Material: | ABS/UPVC/PP | Warranty: | 1 Year |
| High Light: | fine bubble membrane diffusers,fine bubble air diffuser |
||
Industry Disc Type Air Diffuser Nano Bubble Diffuser Environmental Protection

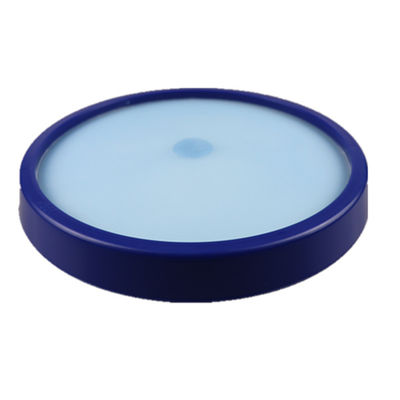

Fine bubble disc air diffuser with silicone membrane features a unique split pattern and slit shapes, which can disperse air bubbles in an extremely fine and uniform pattern for high oxygen transfer efficiency. A much highly effective and integrated check valve enables the aeration zones to be easily shut down for air-on/air-off applications. It can be operated over a wide range of airflows with minimum maintenance for long term performance.
Silicone membranes offer high temperture resistance ,and chemical resistance that differs from other products .Silicon is an inorganic ,and therefore offers excellent resistance tomany organic wastes.Our formulationn is designed to resist tearing and creep,while producing fine bubbles at a modest headloss.
Our Company Committed to environmental protection equipment and new materials in the field of research and development and manufacturing, and undertake sewage treatment project general contracting, or subcontract the project, we have with the domestic more than 100 environmental protection industry companies to maintain good relations of cooperation.
| Material | EPDM | EPDM | EPDM | Silicone | Silicone | Silicone | TPU |
| Specification | D200 | D260 | D300 | D200 | D260 | D300 | D200 |
| Outer Diameter(mm) | 215 | 280 | 330 | 215 | 280 | 330 | 215 |
| Membrane Diameter(mm) | 192 | 255 | 300 | 192 | 255 | 300 | 192 |
| Membrane Thickness(mm) | 2±0.1 | 2±0.1 | 2±0.1 | 2±0.1 | 2±0.1 | 2±0.1 | 1.2 |
| Bubble Diameter(mm) | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 |
| Air Flow Range(Nm³/h) | 1~2.5 | 1~4 | 1~6 | 1~2.5 | 1~4 | 1~6 | 1~2.5 |
| Normal Air Flow(Nm³/h) | 1.8 | 2.5 | 4 | 1.8 | 2.5 | 4 | 1.8 |
| Max Working Temp (℃) | 80 | 80 | 80 | 100 | 100 | 100 | 100 |
1. Silicone air bubble diffuser is uded in wastewater treatment plant, such as city sewage plant.
2. Silicone air bubble diffuser is used for mixing oxygen/ozone into water.
3. Silicone bubble diffuser is used in fish pond culture to increase oxygen to prevent blockage.
1. Aeration of fishpond and other applications
2. Aeration of deep aeration basin
3. Aeration for excreta and animal waste water treatment plant
4. Aeration for denitrification/dephosphorization aerobic processes
5. Aeration for high concentration waste water aeration basin,and aeration for regulating pond of waste water treatment plant
6. Aeration for SBR,MBBR reaction basin,contact oxidation pond;activated sludge aeration basin in sewage disposal plant
