Dia 750mm Microporous Plate Aerator With Continuous Aeration System

Dia 750mm Microporous Plate Aerator With Continuous Aeration System

  • Dia 750mm Microporous Plate Aerator With Continuous Aeration System
  • Dia 750mm Microporous Plate Aerator With Continuous Aeration System
  • Dia 750mm Microporous Plate Aerator With Continuous Aeration System
  • Dia 750mm Microporous Plate Aerator With Continuous Aeration System
  • Dia 750mm Microporous Plate Aerator With Continuous Aeration System
  • Dia 750mm Microporous Plate Aerator With Continuous Aeration System
Dia 750mm Microporous Plate Aerator With Continuous Aeration System
Product Details:
Place of Origin: China
Brand Name: Changier
Certification: CE/ISO9001
Model Number: Silicone-D90
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T
Supply Ability: 10000 Sets Per Month
Contact Now
Detailed Product Description
Material: Epdm Membrane+ABS Size: Dia 750mm
Weight: 2KG Bubble Size: Under 3mm
Color: White Temperature: 0-100℃
Type: Plate Micropurous Aerator
High Light:

750mm Plate Aerator

,

Microporous Plate Aerator

,

ISO9001 Plate Aerator

Product Description

Plate microporous aerator
The support plate of the plate aerator is made of ABS engineering plastics, the membrane is laid on it, and the membrane is pressed once to form. The aeration system can be used in intermittent operation system and continuous aeration system. It has the characteristics of high oxygen utilization rate, reliable performance, effective prevention of sewage backflow, long service life, etc Plate aerator has a unique structure. Its advantage is that it can ensure a constant oxygen transfer rate in a wide range of working gas.
Details Images

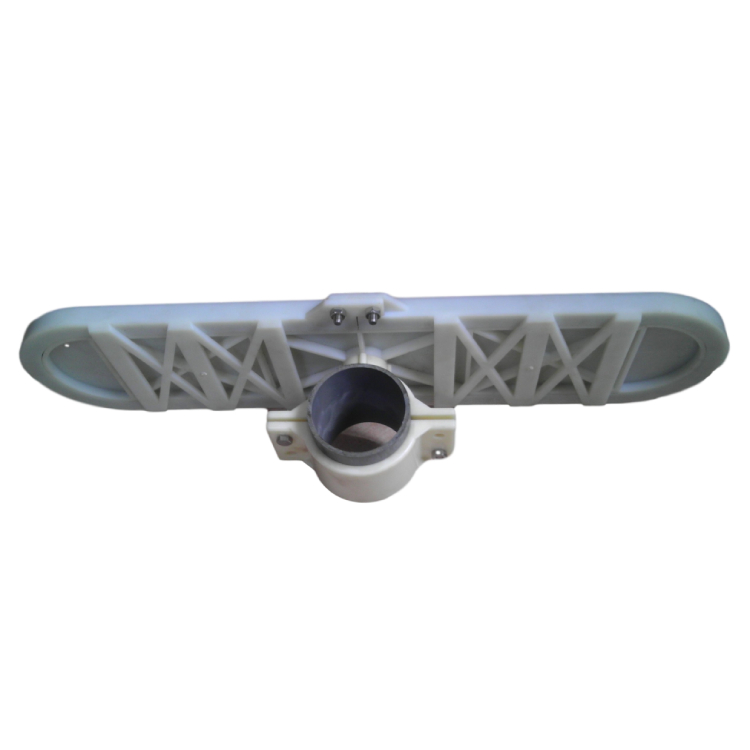

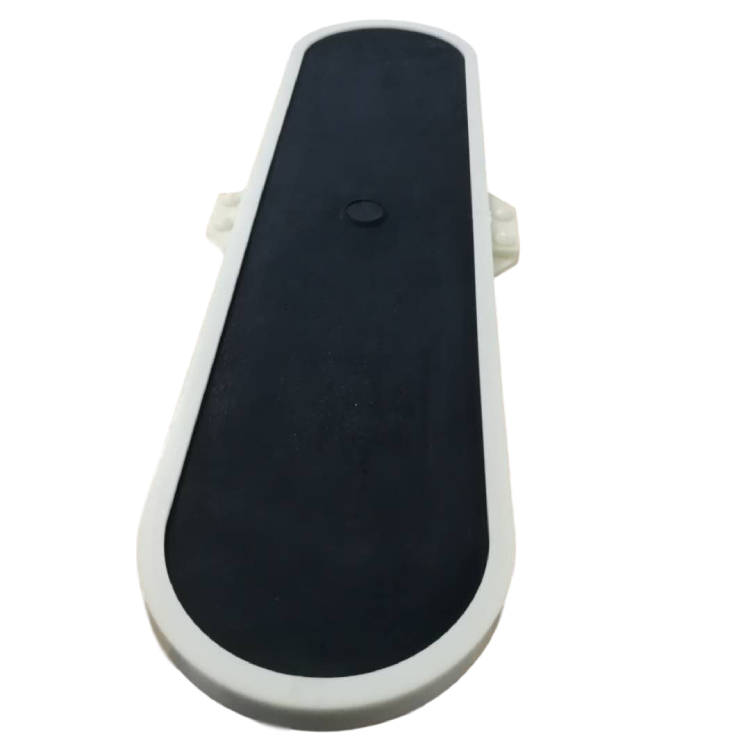

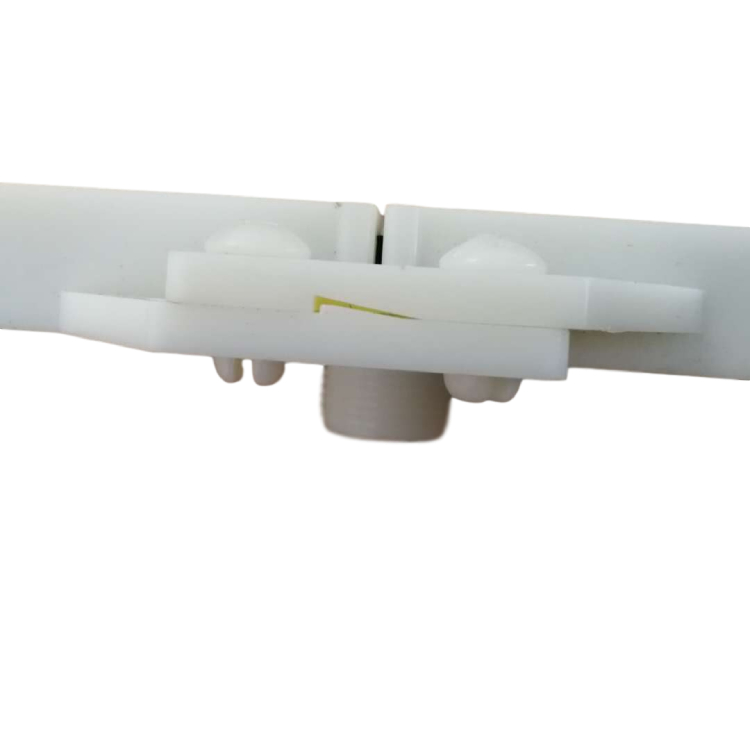

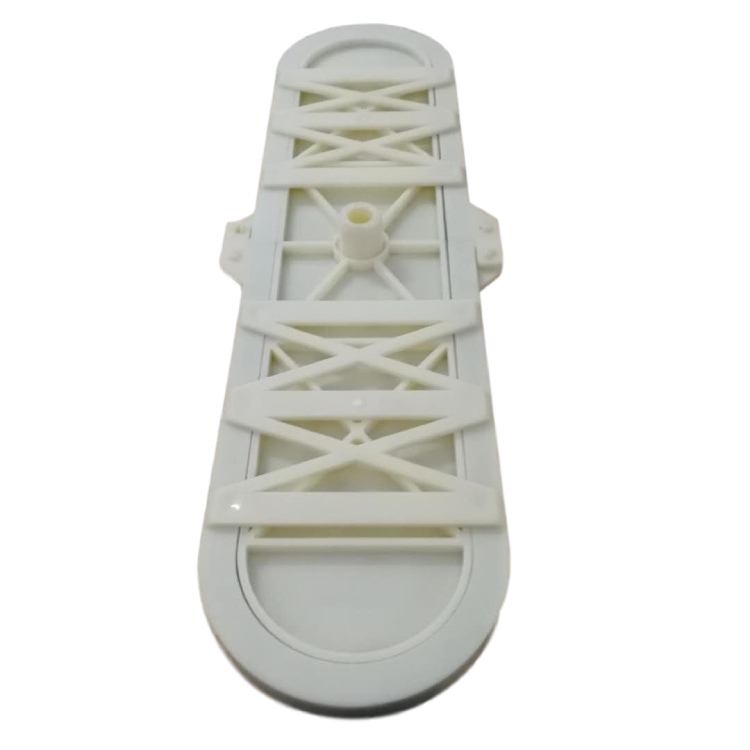

Dia 750mm Microporous Plate Aerator With Continuous Aeration System 0
Dia 750mm Microporous Plate Aerator With Continuous Aeration System 1
Dia 750mm Microporous Plate Aerator With Continuous Aeration System 2
Dia 750mm Microporous Plate Aerator With Continuous Aeration System 3
Product characteristics MF type flat membrane microporous aerator has a unique structure. Its advantage is that the aeration system can maintain a constant oxygen transfer rate in a wide range of working gas. The support plate of the aerator is made of ABS engineering plastics, the membrane is laid on it, and the membrane is pressed once to form, so there is no degumming problem caused by secondary sticking. The aerator can be used not only for intermittent operation system, but also for continuous operation system. Special drilling technology is used to make the aerator automatically close micropores when it stops running, so as to effectively prevent sewage from pouring into the air pipe. The surface of aeration equipment chassis is smooth and free of scratches and cracks that affect the use. The gas supply can be continuously adjusted, but when the gas flow changes greatly, the self closing micropores can still open and close freely, releasing bubbles of uniform distribution and size, with good adjustable performance. The air flow of the aerator is evenly distributed on the whole surface, and has good anti blocking ability. The appearance is smooth, flat, free of impurities and even particles. The aerator has good corrosion resistance and good sealing performance.
Specification
Name
MF650*150
material
ABS/EPDM(silicon rubber)
Design ventilation capacity (m3 / h)
6-7
Service area
(M2 h)
1-2
Oxygen utilization rate (%)
> 30
Oxygen charging capacity (kgo2 / h)
≥0.6

Theoretical dynamic efficiency (kgo2 / kW. H)
6.0
Resistance loss (PA)
< 4500
Bubble size(mm)
1-3
Company Profile

The company is a design and development, production and manufacturing, sales and service as one of the aerator production enterprises. After years of hard work and innovation, the company has cooperated with many famous domestic universities in the early 1990s to develop the series of microporous aeration products in sewage
Dia 750mm Microporous Plate Aerator With Continuous Aeration System 4



treatment, which has formed a diversified product structure. There are already a series of flat aeration heads, arch aeration heads, tubular aerators, liftable aerators, oxidation ditch aeration series, environmental protection fillers and accessories And
other products.
Company products
Dia 750mm Microporous Plate Aerator With Continuous Aeration System 5
Construction effect
Dia 750mm Microporous Plate Aerator With Continuous Aeration System 6
Product packaging



Packing in cartons free of charge. If wooden cases or other special requirements are required, part of the cost shall be added
FAQ
Q: Hello! I have some questions that you need to help me answer, can I?
A: Yes, I am very happy to answer your question.
Q: What is the acceptable MOQ?
A: Two cartons for minimum order quantity.
Q:Can you customize the trademark?
A:Brand and product can be customized
Q: What is the delivery time?
A: For sample, we usually have stock, so the delivery time will be quite short.
For normal order, the delivery time should be in two weeks.
Q: What is acceptable pay term?
A: T/T.
Q: Do you provide sample?
A: We can offer free sample for test, and customer needs to pay the freight charge.
Q: Thank you for your answer.
A: I am very happy to serve you!
