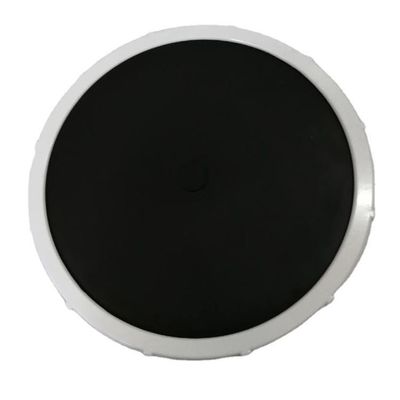

ISO9001 Certified EPDM Fine Bubble Disc Diffuser 0-100C Temperature

ISO9001 Certified EPDM Fine Bubble Disc Diffuser 0-100C Temperature

  • ISO9001 Certified EPDM Fine Bubble Disc Diffuser 0-100C Temperature
  • ISO9001 Certified EPDM Fine Bubble Disc Diffuser 0-100C Temperature
  • ISO9001 Certified EPDM Fine Bubble Disc Diffuser 0-100C Temperature
  • ISO9001 Certified EPDM Fine Bubble Disc Diffuser 0-100C Temperature
  • ISO9001 Certified EPDM Fine Bubble Disc Diffuser 0-100C Temperature
  • ISO9001 Certified EPDM Fine Bubble Disc Diffuser 0-100C Temperature
ISO9001 Certified EPDM Fine Bubble Disc Diffuser 0-100C Temperature
Product Details:
Place of Origin: China
Brand Name: Changier
Certification: CE/ISO9001
Model Number: Silicone-D90
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T
Supply Ability: 10000 Sets Per Month
Contact Now
Detailed Product Description
Material: Silicone Membrane+ABS Size: Dia 90*1000mm
Weight: 2KG Bubble Size: Under 3mm
Color: White Temperature: 0-100℃
High Light:

EPDM fine bubble disc diffuser

,

ISO9001 Fine Bubble Disc Diffuser

,

EPDM membrane disc diffuser

Product Description

Plate microporous aerator
The plate series aerator is composed of chassis, air distribution plate, synthetic rubber diaphragm, compression ring, air guide plate, connecting base and connecting parts of air distribution pipe. The base is made of ABS plastic. The base and the compression ring are threaded. The EPDM rubber diaphragm is covered on the air equalizing plate. Under the action of the fixing ring, it can ensure that there is no air leakage around the diaphragm. The rubber diaphragm has evenly distributed holes. This kind of rubber diaphragm is processed by many special processes. Its performance is stable and it is resistant to medium concentration acid, alkali, oil and other media. It is the first one to be put into use Aerator in engineering operation.
Details Images
ISO9001 Certified EPDM Fine Bubble Disc Diffuser 0-100C Temperature 0
ISO9001 Certified EPDM Fine Bubble Disc Diffuser 0-100C Temperature 1
ISO9001 Certified EPDM Fine Bubble Disc Diffuser 0-100C Temperature 2
Product characteristics The plate type microporous aerator has a unique check function, which effectively prevents the pollution from flowing into the gas distribution pipeline when it stops running. It is easy to install and can be flexibly used in sewage treatment system of various processes. It is a mature and efficient aeration equipment.
Specification
Name
7''
9''
12''

Working ventilation capacity (m3 / h)
1-3
1-5
2-8

Design ventilation capacity (m3 / h)
2
3
4

Service area
(M2 h)
0.25-0.45
0.35-0.65
0.45-0.75

Oxygen utilization rate (%)
> 30
> 30
> 30

Oxygen charging capacity (kgo2 / h)
0.15-0.35

0.21-0.4
0.21-0.53

Theoretical dynamic efficiency (kgo2 / kW. H)
6.5
6.5
6.5

Resistance loss (PA)
< 3000
< 3000
< 3000

Bubble size(mm)
1-3
1-3
1-3

Company Profile
The company is a design and development, production and manufacturing, sales and service as one of the aerator production enterprises. After years of hard work and innovation, the company has cooperated with many famous domestic universities in the early 1990s to develop the series of microporous aeration products in sewage
ISO9001 Certified EPDM Fine Bubble Disc Diffuser 0-100C Temperature 3



treatment, which has formed a diversified product structure. There are already a series of flat aeration heads, arch aeration heads, tubular aerators, liftable aerators, oxidation ditch aeration series, environmental protection fillers and accessories And
other products.
Company products
ISO9001 Certified EPDM Fine Bubble Disc Diffuser 0-100C Temperature 4
Construction effect
ISO9001 Certified EPDM Fine Bubble Disc Diffuser 0-100C Temperature 5
Product packaging

Packing in cartons free of charge. If wooden cases or other special requirements are required, part of the cost shall be added

FAQ
Q: Hello! I have some questions that you need to help me answer, can I?
A: Yes, I am very happy to answer your question.
Q: What is the acceptable MOQ?
A: Two cartons for minimum order quantity.
Q:Can you customize the trademark?
A:Brand and product can be customized
Q: What is the delivery time?
A: For sample, we usually have stock, so the delivery time will be quite short.
For normal order, the delivery time should be in two weeks.
Q: What is acceptable pay term?
A: T/T.
Q: Do you provide sample?
A: We can offer free sample for test, and customer needs to pay the freight charge.
Q: Thank you for your answer.
A: I am very happy to serve you!
