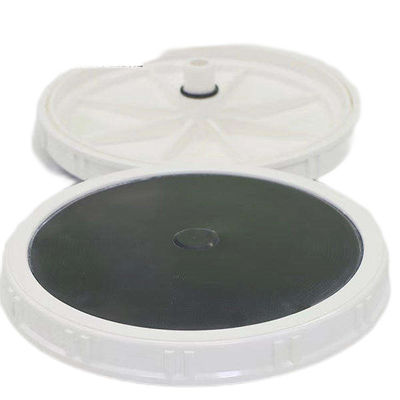

Wastewater Treatment Microbubble Rubber Membrane Air Diffuser 90mm

Wastewater Treatment Microbubble Rubber Membrane Air Diffuser 90mm

  • Wastewater Treatment Microbubble Rubber Membrane Air Diffuser 90mm
  • Wastewater Treatment Microbubble Rubber Membrane Air Diffuser 90mm
  • Wastewater Treatment Microbubble Rubber Membrane Air Diffuser 90mm
  • Wastewater Treatment Microbubble Rubber Membrane Air Diffuser 90mm
  • Wastewater Treatment Microbubble Rubber Membrane Air Diffuser 90mm
  • Wastewater Treatment Microbubble Rubber Membrane Air Diffuser 90mm
Wastewater Treatment Microbubble Rubber Membrane Air Diffuser 90mm
Product Details:
Place of Origin: China
Brand Name: Changier
Certification: CE/ISO9001
Model Number: Silicone-D90
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T
Supply Ability: 10000 Sets Per Month
Contact Now
Detailed Product Description
Material: Silicone Membrane+ABS Size: Dia 90*1000mm
Weight: 2KG Bubble Size: Under 3mm
Color: White Temperature: 0-100℃
High Light:

microbubble Rubber Membrane air diffuser

,

Rubber Membrane air diffuser 90mm

,

rubber pond air diffuser 90mm



Rubber Membrane air diffuser wastewater treatment microbubble air diffusion aeration fine bubble disc


Product Details
HMD
Diameter 200mm
Diameter 270mm
Diameter 340mm
Service area
0.15-0.6m2
0.25-0.8m2
0.4-1.3m2
Air flow
1-3.8 m³/h
1.5-5.5 m³/h
0.4-1.3m2
Oxygen utilization
27%-38%
27%-38%
27%-38%
Resistance loss
1700-2500 pa
27%-38%
1500-3000 pa
Temperature
0-80℃
0-80℃
0-80℃
Membrane thickness
2±0.1mm
2±0.1mm
2±0.1mm
Perforation quantity
4400
6600
11440
Perforation size
1mm
1mm
1mm
Bubble size
1-2mm
1-2 mm
1-2 mm
Product Paramenters
Wastewater Treatment Microbubble Rubber Membrane Air Diffuser 90mm 0

1.The rubber washer and the corresponding groove are designed to ensure the air tightness of the product. Instead of using raw tape in the installation process, it is convenient to install, stable and reliable.
2.Check valve structure. When operation stops, the membrane covers the structure under the action of rebound force and water depth pressure to prevent the backflow of mud water.
3.Mechanical assembly production line, hot welding instead of adhesive process, to ensure adequate supply, uniform productquality, stable and reliable.
4.The spanner position is designed. Spanner is used to replace the traditional hand-twist installation, avoid membrane damage. And installation is convenient and reliable. 5.Product adopts single-ear pole clamp which make product bear 360 degree uniform stress. Under heat expansion and contraction as well as vibration, it can play a spring regulating effect. All single-ear clamps are 316 stainless steel material. It is more reliable in sewage. 6.Six channel design, increase ventilation cross - sectional area, reduce resistance, efficient and energy - saving. The multiple positions of the membrane jointly bear air friction, reduce local wear and extend aerator membrane service life. Also, promote product 360 ° aeration, improve the product efficiency.
Product Advantages
Wastewater Treatment Microbubble Rubber Membrane Air Diffuser 90mm 1



Advantage 1: Membrane material
1. Membrane using imported formula and material. Its good rubber elasticity, ant-shrinking, anti-hardening and anti-aging ability extending the membrane service life.
2. Membrane elasticity and blasting test.
Wastewater Treatment Microbubble Rubber Membrane Air Diffuser 90mm 2

Advantage 2:Two special membrane reinforced structure design

Compared to others
Know The Products

Method1:
1.Tap the rubber saddle into the vent opening. 2.Screw the fine bubble disc diffuser into the rubber saddle internal thread.
Wastewater Treatment Microbubble Rubber Membrane Air Diffuser 90mm 3
Method2:
1.Tap the rubber saddle into the vent opening. 2.Fix the fixed adapter outside of the rubber saddle. 3.Screw the fine bubble disc diffuser into the rubber saddle internal thread.
Wastewater Treatment Microbubble Rubber Membrane Air Diffuser 90mm 4
Engineering Design
Wastewater Treatment Microbubble Rubber Membrane Air Diffuser 90mm 5






Fine bubble diffuser is the only product that we do because we want to be concentration and profession. Besides of manufacturing product, we also do aerobic plant calculation and project design. Also, we make construction in domestic market. With projects feedback, we improve product continuously to solve different problems.
Company Profile

Wastewater Treatment Microbubble Rubber Membrane Air Diffuser 90mm 6


Wastewater Treatment Microbubble Rubber Membrane Air Diffuser 90mm 7


FAQ



Q: Hello! I have some questions that you need to help me answer, can I? A: Yes, I am very happy to answer your question. Q: What is the acceptable MOQ? A: Two cartons for minimum order quantity. Q: What is the delivery time? A: For sample, we usually have stock, so the delivery time will be quite short. For normal order, the delivery time should be in two weeks. Q: What is acceptable pay term? A: T/T. Q: Do you provide sample? A: We can offer free sample for test, and customer needs to pay the freight charge. Q: Thank you for your answer. A: I am very happy to serve you!
