Protect Water Resources For Our Planet
 |
| Place of Origin: | China |
| Brand Name: | Changier |
| Certification: | CE/ISO9001 |
| Model Number: | EPDM-D65 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton Box |
| Delivery Time: | 7 days after payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Sets Per Month |
| Material: | EPDM | Size: | D65*1000mm |
|---|---|---|---|
| Weight: | 2KG | Bubble Size: | Less Than 3mm |
| Color: | Black | Certification: | CE/ISO9001 |
| High Light: | EPDM fine bubble tube diffuser,Fine Bubble Tube Diffuser 65mm,membrane tube diffuser 65mm |
||

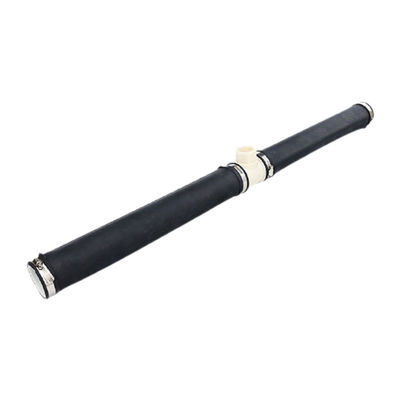

EPDM Oxygen Fine Bubble Tube Diffuser Aeration
Wastewater Treatment Fine Bubble Membrane Air Diffuser EPDM Membrane Tube Diffuser
Features
* High oxygen transfer efficiency
* Low cost of total ownership
* Anti-clogging, corrosion resistant
* Ease of installation,2 minutes for one diffuser
* Maintenance-free design, 8 years service life
* EPDM/SILICONE membrane with excellent performance
Fine Bubble Tube Diffuser can be connected on one side or in pairs to different rectangular and round tubes (ABS material) with the appropriate adapter. The membranes are manufactured with premium quality EPDM material and are available with fine or coarse-bubble perforation.The support tubes(ABS or PVC material)can be reused when membranes are replaced. The units offer maximum performance at minimum cost and require minimum maintenance.
1. High oxygen transfer efficiency
2. Low cost of total ownership
3. Anti-clogging, corrosion resistant
4. Ease of installation,2 minutes for one diffuser
5. Maintenance-free design, 8 years service life
6. EPDM/SILICONE membrane with excellent performance
| Material | EPDM | Silicone | TPU | |||
| Specification | D65-1000 | D90-1000 | D65-1000 | D90-1000 | D65-1000 | D90-1000 |
| Supporting BodyDiameter(mm) | 63 | 90 | 63 | 90 | 63 | 90 |
| Membrane Diameter(mm) | 65 | 92 | 65 | 92 | 65 | 92 |
| Membrane Thickness(mm) | 2±0.1 | 2±0.1 | 1.6±0.1 | 1.6±0.1 | 0.6+0.1 | 0.6+0.1 |
| Bubble Diameter(mm) | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 | 1~3 |
| Air Flow Range(Nm3/h) | 2~12 | 3~18 | 2~12 | 3~18 | 2~12 | 3~18 |
| Normal Air Flow(Nm3/h) | 8 | 12 | 8 | 12 | 8 | 12 |
| Max Working Temperature(℃) | 80 | 80 | 100 | 100 | 100 |
100
|
|
Type
|
Membrane Tube Diffuser
|
||
|
Model
|
φ63
|
φ93
|
φ113
|
|
Length
|
500/750/1000mm
|
500/750/1000mm
|
500/750/1000mm
|
|
MOC
|
EPDM/Silicon membrane ABS tube
|
EPDM/Silicon membrane ABS tube
|
EPDM/Silicon membrane ABS tube
|
|
Connector
|
1''NPT male thread
3/4''NPT male thread
|
1''NPT male thread
3/4''NPT male thread
|
1''NPT male thread
3/4''NPT male thread
|
|
Bubble Size
|
1-2mm
|
1-2mm
|
1-2mm
|
|
Design Flow
|
1.7-6.8m3/h
|
3.4-13.6m3/h
|
3.4-17.0m3/h
|
|
Flow Range
|
2-14m3/h
|
5-20m3/h
|
6-28m3/h
|
|
SOTE
|
≥40%(6m submerged)
|
≥40%(6m submerged)
|
≥40%(6m submerged)
|
|
SOTR
|
≥0.90kg O2/h
|
≥1.40kg O2/h
|
≥1.52kg O2/h
|
|
SAE
|
≥8.6kg O2/kw.h
|
≥8.6kg O2/kw.h
|
≥8.6kg O2/kw.h
|
|
Headloss
|
2200-4800Pa
|
2200-4800Pa
|
2200-4800Pa
|
|
Service Area
|
0.75-2.5m2
|
1.0-3.0m2
|
1.5-2.5m2
|
|
Service Life
|
>5 year
|
>5 year
|
>5 year
|
