Micro Nano Fine Oxygen Air Aeration Diffuser 6Inch Coarse Bubble Diffuser

Name: Micro Nano Fine Oxygen Air Aeration Diffuser 6Inch Coarse Bubble Diffuser
Brand: Changier
SKU: Silicone-D90
Price: 1.00 USD
Availability: InStock
Rating: 5 (183 reviews)

Product Details:

Place of Origin:	China
Brand Name:	Changier
Certification:	CE/ISO9001
Model Number:	Silicone-D90

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Carton Box
Delivery Time:	7 days after payment
Payment Terms:	L/C, T/T
Supply Ability:	10000 Sets Per Month

Contact Now

Detailed Product Description

Material:	Silicone Membrane+ABS	Size:	Dia 90*1000mm
Weight:	2KG	Bubble Size:	Under 3mm
Color:	White	Temperature:	0-100℃
High Light:	Aeration Diffuser 6Inch , 6Inch Coarse Bubble Diffuser , Fine Oxygen Aeration Diffuser

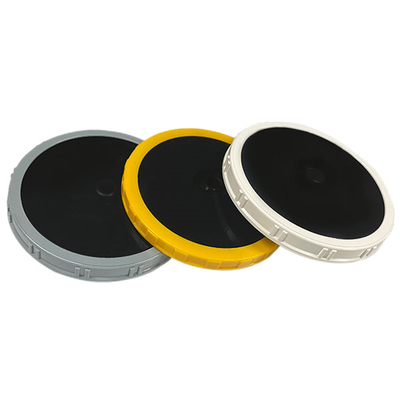

Micro Nano Fine Small Oxygen Air Aeration Plate Disc Diffuser For Wastewater Treatment Fish Farming coarse bubble diffus

Product Description

What Is The Best Advantages For Smart Disc Diffuser ?

In order to make long life of the Disc diffuser, the most important is the good fomula of EPDM (Ethylene-Propylene-Diene Monomer).

After 10 years development, design a very good formula which be 3 to 5 years longer life and lower resistant, high deformation resistance and elasticity

Super Disc Diffuser Parameter

Applicable Scope:Municipal sewage and industrial sewage can also be used for the restoration and management of lakes and rivers
and aquaculture.

Aeration Diaphragm:EPDM Silica gel Diaphragm Thickness:1.8±0.1mm Lined Pipe:PP-TV
Size Specifications:Φ215/Φ260/Φ330 Thread Standard: The standard size is DN20 and DN25; other specifications of thread standards
can also be customized according to actual needs.

Item number	DD170	DD215	DD260	DD330
Bubble type	Coarse Bubble	Fine Bubble	Fine Bubble	Fine Bubble
Diameter	6 Inch	8 Inch	9Inch	12Inch
Material	EPDM/Silicon Membrane	EPDM/Silicon Membrane	EPDM/Silicon Membrane	EPDM/Silicon Membrane
Material	ABS/PP Carrrier Plate	ABS/PP Carrrier Plate	ABS/PP Carrrier Plate	ABS/PP Carrrier Plate
Connector	3/4" NPT Male thread	3/4" NPT Male thread	3/4" NPT Male thread	3/4" NPT Male thread
Bubble size(mm)	4-5	1-2	1-2	1-2
Design Flow(m3/h)	1-5	1.5-2.5	3-4	5-6
Flow Range(m3/h)	6-9	1-6	1-8	1-12
Standard Oxygen Transfer Efficiency( 6m submerged)	≥36%	≥38%	≥38%	≥38%
Service Area(m2)	0.5-0.8	0.2-0.64	0.25-1.0	0.4-1.5
Service Life(years)	≥6	≥6	≥6	≥6

Disc Diffuser Aeration Features

1. Simple structure, easy to install

2. Strong sealing, no air leakage 3. Maintenance-free design, long service life 4. Corrosion resistant, anti-clogging 5. High oxygen transfer efficiency

About The Smart Disc Diffuser Core Material

1. Import High quality EDPM 8600 from Exxon Mobil USA

2. High quality Carbon which from Cabot from USA

Your Must Be Curious About Our Production Environment

How Does A Perfect Disc Diffuser Come Out?

Development of Membrane Materials

1.Exxon Molecular Weight "Bimodal" Distribution EPDM Original Gum

2.DMS company controllable long chain branching technology EPDM
3.Double peroxide vulcanization crosslinking technology :

The peroxy system forms carbon-carbon crosslinks, which have short crosslinks, high rigidity, high stability, low compression set, and high resilience, but also have the disadvantages of low tear strength and elongation. The double peroxycuring system improves tear strength and elongation.

The increase in strength makes it possible to increase the number of pores per unit area:

1.The number of holes is increased to: 25-30 holes/cm2

2.Tubular aeration membrane, 32,000 holes per meter

3.The pores are 30% smaller, and the ventilation resistance is also 20% smaller

Application Field

Disc Diffuser Aeration Application
1. Aeration for SBR reaction basin, contact oxidation pond, and activated sludge aeration basin in sewage disposal plant;

2.Aeration for denitrification / dephosphorization aerobic processes;

3. Aeration for excreta and animal wastewater treatment plant;
4. Aeration of deep aeration basin;

5. Aeration for high concentration wastewater aeration basin, and aeration for regulating pond of wastewater treatment plant;

6. Aeration of fishpond and other applications.
