Product Details:
Place of Origin: Jiangsu,China
Brand Name: Changier
Certification: CE/ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 45 Weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Units Per Year
Contact Now
Detailed Product Description
Applicable Industries: Construction Works , Energy & Mining Material: Stainless Steel
Warranty: 1 Year Warranty Structure: Conveyor System
Certification: ISO 9001, CE Certificate Type: Screw Conveyor
Application: Grain, Coal, Chemical Power: Depends On Model
Dimension(L*W*H): Based On The Model
High Light:

shaftless screw conveyor

,

screw feeder machine

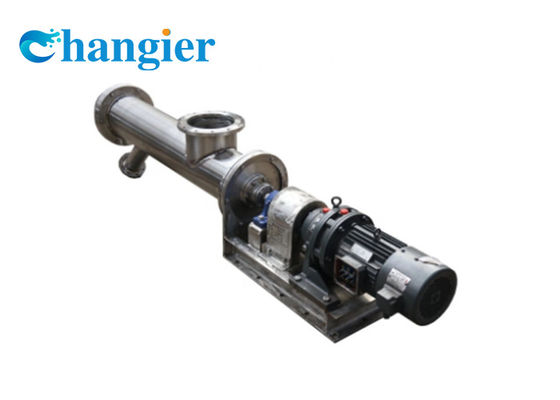

Horizontal Packaging Screw Conveyor Lnclined Screw Conveyor



Description



Screw conveyor is a kind of continuous transmission equipment which without immunity traction components, it uses rotation screw to convey material. The screw conveyor is of simple structure, low marking cost, strong sealing, safe ,convenient operation and other advantages, It allows multiple inlets and outlets. It is widely used in various industrial department(such as building materials, chemicals, electric power, metallurgy, coal, mine, food and other industries)to convey powder, granular and lump material, such as, coal, ash, slag, cement, food, etc. The temperature of material is less than 200°C. Screw conveyor is not suitable for transporting those material which is perishable, with big viscous and easy caking. In the concrete mixing plant screw conveyor's effect reflected to the fullest.



Main Features


1.Simple structure,easy operation

2.Small section of whole machine,being suitable for horizontal or tilted transportation

3.Stable transportation so as to play a good role

4.Excellent sealing performance so as to have advantages under he situation that has more dust and made higher request on the environment and to avoid the dust phenomenon in the process of transportation.



Specification

Model

Screw

diameter

Screw pitch n---rotation speed(r/min), allowable deviation<10%
Q---volume(m3/h), fill-factor=0.33
(mm) (mm) n Q n Q n Q n Q
LS160 160 112 112 8 90 7 71 6 50 4
LS200 200 100 100 14 80 12 63 10 50 7
LS250 250 90 90 24 71 20 56 16 45 13
LS315 315 80 80 34 63 26 50 21 40 16
LS400 355 71 71 64 56 52 45 41 36 34
LS500 400 63 63 100 50 80 40 64 32 52
LS630 450 50 50 145 40 116 32 94 25 80
LS800 500 40 40 208 32 165 25 130 20 110
LS1000 600 32 32 300 25 230 20 180 16 150



Schematic diagram

Horizontal Packaging Screw Conveyor Lnclined Screw Conveyor 0

About us

Our company is a high-tech enterprise integrating design, research and development, production and sales. It has unique design experience and concepts in vibrating motors, vibrating screens and conveying equipment. Experienced technicians can apply the design and development of the required products according to your needs to ensure that every customer who accompanies them can be satisfied.
Horizontal Packaging Screw Conveyor Lnclined Screw Conveyor 1

Application

1,Grain
2,powder
3,chemicals
4,feed processing
5,pharmaceutical
6,perochemical
7,mining and minerals
8,coal

Product display

Horizontal Packaging Screw Conveyor Lnclined Screw Conveyor 2

Packaging Details

We will packed it in wooden case, steel/wooden pallet according to the actual situation of screw conveyor, or customized.
Horizontal Packaging Screw Conveyor Lnclined Screw Conveyor 3

FAQ



1. What's material will be transported by Inclined screw conveyor?
Cement, sand, limestone and grain etc.
2. What's capacity of Inclined screw conveyor that you want?
20t/h, 50t/h and 100t/h etc.
3. How long is the Inclined screw conveyor?
5m, 10m, 15m and 20m etc.
4. Is it horizontal transport or inclined? If inclined ,what's the inclined angle?
0-90°
5. It's better if you have layout drawing or sketch.
