| Place of Origin: | Jiangsu,China |
| Brand Name: | Changier |
| Certification: | CE/ISO9001 |
| Model Number: | CG-SP500 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Cases |
| Delivery Time: | 30 days after deposit arrives |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 Units Per Year |
| Material: | SS304, SUS316L | Color: | Customerized |
|---|---|---|---|
| Application: | Industry Water Treatment | Brand: | Changier |
| Type: | Sewage Treatment Plant | Product Name: | Sludge Dewatering Machine |
| Highlight: | water pressure tank,wastewater treatment machine |
||

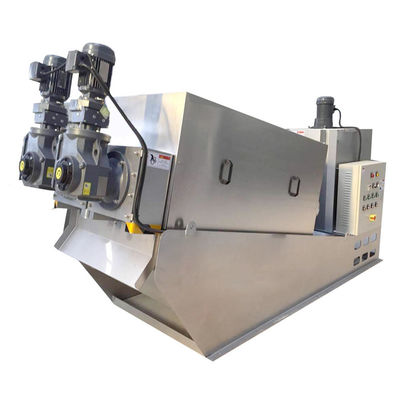

Industry Sewage Treatment Machine Screw Press For Efficient Sludge Dewatering
Screw Press Sludge Dewatering Machine is widely used in municipal wastewater treatment engineering, petrochemical, light industry, chemical fiber, paper making, pharmaceutical, leather and other industries.
Water treatment processes generally produce water-containing sludge of different nature. The sludge treatment equipment mainly reduces the water content of the sludge, reduces the water content, reduces the sludge volume, and brings convenience for the subsequent treatment or disposal of the sludge.
How to select a suitable quality automatic sludge Multi-disc screw press?
1. what is your sludge treatment capacity per hour(m3/hr)?
2. What is your sludge solid content or moisture content(%)?
3. What is the sludge type?
4. What is the character of the your sludge?
| Model | DS Standard handling capacity(kg/h) | Sludge flow(m³/h) | Dimension(mm) |
Net weight (kg) |
Function weight (kg) |
||||||
| High concentration | Low concentration |
10000 mg/l |
20000 mg/h |
25000 mg/h |
50000 mg/h |
L | W | H | |||
| 131 | 10 | 5 | 0.5 | 0.5 | 0.4 | 0.2 | 1870 | 730 | 1170 | 250 | 395 |
| 132 | 20 | 10 | 1 | 1 | 0.8 | 0.4 | 2000 | 960 | 1230 | 350 | 595 |
| 133 | 30 | 15 | 1.5 | 1.5 | 1.2 | 0.6 | 2000 | 1190 | 1230 | 450 | 795 |
| 251 | 30 | 15 | 1.5 | 1.5 | 1.2 | 0.6 | 2690 | 880 | 1600 | 500 | 805 |
| 252 | 60 | 30 | 3 | 3 | 2.4 | 1.2 | 2810 | 1120 | 1600 | 800 | 1320 |
| 253 | 90 | 45 | 4.5 | 4.5 | 3.6 | 1.8 | 2810 | 1360 | 1600 | 1100 | 1820 |
| 301 | 60 | 30 | 3 | 3 | 2.4 | 1.2 | 3310 | 1000 | 1700 | 750 | 1275 |
| 302 | 120 | 60 | 6 | 6 | 4.8 | 2.4 | 3500 | 1300 | 1700 | 1340 | 2225 |
| 303 | 180 | 90 | 9 | 9 | 7.2 | 3.6 | 3700 | 1650 | 1700 | 1750 | 3030 |
| 304 | 240 | 120 | 12 | 12 | 9.6 | 4.8 | 4000 | 2050 | 1750 | 2150 | 4150 |
| 351 | 100 | 50 | 5 | 5 | 4 | 2 | 3610 | 1100 | 1850 | 1150 | 1915 |
| 352 | 200 | 100 | 10 | 10 | 8 | 4 | 3820 | 1490 | 1850 | 1950 | 3205 |
| 353 | 300 | 150 | 15 | 15 | 12 | 6 | 4120 | 1770 | 1850 | 2800 | 4830 |
| 354 | 400 | 200 | 20 | 20 | 16 | 8 | 4320 | 2290 | 1850 | 3700 | 6515 |
| 401 | 160 | 80 | 8 | 8 | 64 | 3.2 | 4550 | 1180 | 2250 | 2050 | 3425 |
| 402 | 320 | 160 | 16 | 16 | 12.8 | 6.4 | 4870 | 1710 | 2250 | 3850 | 6645 |
| 403 | 480 | 240 | 24 | 24 | 19.2 | 9.6 | 4790 | 2550 | 2250 | 5400 | 9710 |
| 404 | 640 | 320 | 32 | 32 | 25.6 | 12.8 | 4840 | 3140 | 2250 | 7000 | 12960 |
Sludge Dehydrator can be installed in places where placement would not be possible with other technology . What makes Sludge Dehydrator suitable to cutomers who are considering the replacement of existing sludge dewatering unit .
Due to the moving of the fixed rings and moving rings self -cleaning .The ubiquitous clogging is avoided .Handing oily sludge without trouble while separating the water from the sludge easily . Above all , no need large quantiry of flushing water and no odor ,no secondary pollution during the sludge dewatering process .
Sludge Dehydrator equipped without device like filter clothes or filter pore that easy blocked .Operation so easily and can be set to operate automatically via the eletric control cabinet .
Municipal Sewage
Slaughter House
Printing & Dyeing Sewage
Metal-Processing Sewage
Mining Stone Wastewater
Electronic Sewage
Metallurgical Industry Wastewater
Oily Wastewater
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request.
Delivery time: 3~45 days after confirming order, the detailed delivery date should be decided by the production season and order quantity.
