Protect Water Resources For Our Planet
 |
| Place of Origin: | Jiangsu,China |
| Brand Name: | Changier |
| Certification: | CE/ISO9001 |
| Model Number: | CG-SP500 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Cases |
| Delivery Time: | 35 days after deposit arrives |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 Units Per Year |
| Material: | SS304/SUS316L | Application: | Waste Water Treatment,Industry Treatment |
|---|---|---|---|
| Type: | Sewage Treatment Unit | Product Name: | Sludge Dewatering Unit |
| Operation: | Easy Handling | Usage: | Sludge Drying |
| High Light: | slurry dewatering equipment,sewage plant equipment |
||

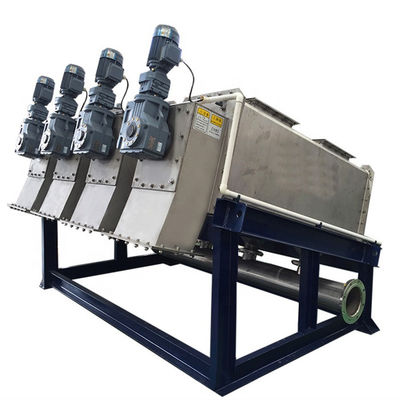

Screw Volute Sludge Dewatering Machine For Industry Waste Water Treatment
Widely used in municipal wastewater treatment engineering, petrochemical, chemical fiber, paper making, light industry,pharmaceutical,etc.
The sludge treatment equipment mainly reduces the water content of the sludge, reduces the water content, reduces the sludge volume, and brings convenience for the subsequent treatment or disposal of the sludge.Water treatment processes generally produce water-containing sludge of different nature.
Sludge Dehydrator can be installed in places where placement would not be possible with other technology . What makes Sludge Dehydrator suitable to cutomers who are considering the replacement of existing sludge dewatering unit .
Due to the moving of the fixed rings and moving rings self -cleaning .The ubiquitous clogging is avoided .Handing oily sludge without trouble while separating the water from the sludge easily . Above all , no need large quantiry of flushing water and no odor ,no secondary pollution during the sludge dewatering process .
Sludge Dehydrator equipped without device like filter clothes or filter pore that easy blocked .Operation so easily and can be set to operate automatically via the eletric control cabinet .
1. what is your sludge treatment capacity per hour(m3/hr)?
2. What is your sludge solid content or moisture content(%)?
3. What is the character of the your sludge?
4. What is the sludge type?
| Model | DS Standard handling capacity(kg/h) | Sludge flow(m³/h) | Dimension(mm) |
Net weight (kg) |
Function weight (kg) |
||||||
| High concentration | Low concentration |
10000 mg/l |
20000 mg/h |
25000 mg/h |
50000 mg/h |
L | W | H | |||
| 131 | 10 | 5 | 0.5 | 0.5 | 0.4 | 0.2 | 1870 | 730 | 1170 | 250 | 395 |
| 132 | 20 | 10 | 1 | 1 | 0.8 | 0.4 | 2000 | 960 | 1230 | 350 | 595 |
| 133 | 30 | 15 | 1.5 | 1.5 | 1.2 | 0.6 | 2000 | 1190 | 1230 | 450 | 795 |
| 251 | 30 | 15 | 1.5 | 1.5 | 1.2 | 0.6 | 2690 | 880 | 1600 | 500 | 805 |
| 252 | 60 | 30 | 3 | 3 | 2.4 | 1.2 | 2810 | 1120 | 1600 | 800 | 1320 |
| 253 | 90 | 45 | 4.5 | 4.5 | 3.6 | 1.8 | 2810 | 1360 | 1600 | 1100 | 1820 |
| 301 | 60 | 30 | 3 | 3 | 2.4 | 1.2 | 3310 | 1000 | 1700 | 750 | 1275 |
| 302 | 120 | 60 | 6 | 6 | 4.8 | 2.4 | 3500 | 1300 | 1700 | 1340 | 2225 |
| 303 | 180 | 90 | 9 | 9 | 7.2 | 3.6 | 3700 | 1650 | 1700 | 1750 | 3030 |
| 304 | 240 | 120 | 12 | 12 | 9.6 | 4.8 | 4000 | 2050 | 1750 | 2150 | 4150 |
| 351 | 100 | 50 | 5 | 5 | 4 | 2 | 3610 | 1100 | 1850 | 1150 | 1915 |
| 352 | 200 | 100 | 10 | 10 | 8 | 4 | 3820 | 1490 | 1850 | 1950 | 3205 |
| 353 | 300 | 150 | 15 | 15 | 12 | 6 | 4120 | 1770 | 1850 | 2800 | 4830 |
| 354 | 400 | 200 | 20 | 20 | 16 | 8 | 4320 | 2290 | 1850 | 3700 | 6515 |
| 401 | 160 | 80 | 8 | 8 | 64 | 3.2 | 4550 | 1180 | 2250 | 2050 | 3425 |
| 402 | 320 | 160 | 16 | 16 | 12.8 | 6.4 | 4870 | 1710 | 2250 | 3850 | 6645 |
| 403 | 480 | 240 | 24 | 24 | 19.2 | 9.6 | 4790 | 2550 | 2250 | 5400 | 9710 |
| 404 | 640 | 320 | 32 | 32 | 25.6 | 12.8 | 4840 | 3140 | 2250 | 7000 | 12960 |
Applications for Municipal Sewage,Slaughter House,Printing & Dyeing Sewage,Metal-Processing Sewage,Mining Stone Wastewater,Electronic Sewage,Metallurgical Industry Wastewater,Oily Wastewater.
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request.
Delivery time: 3~45 days after confirming order, the detailed delivery date should be decided by the production season and order quantity.
