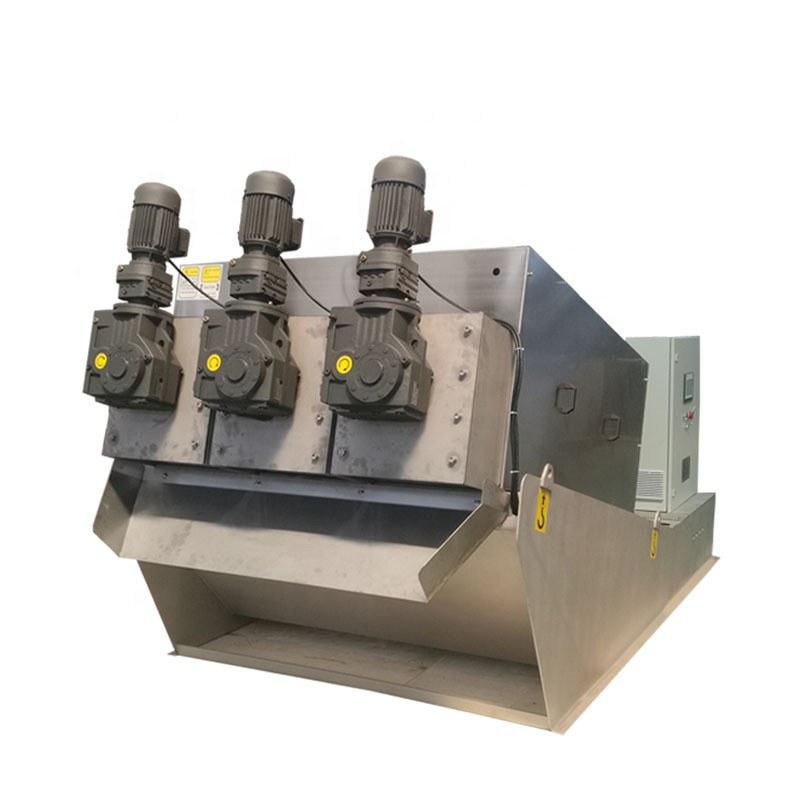

Automatic Sewage Treatment Equipment Screw Type SS304 / SS316 Material

Automatic Sewage Treatment Equipment Screw Type SS304 / SS316 Material

  • Automatic Sewage Treatment Equipment Screw Type SS304 / SS316 Material
Automatic Sewage Treatment Equipment Screw Type SS304 / SS316 Material
Product Details:
Place of Origin: Jiangsu,China
Brand Name: Changier
Certification: CE/ISO9001
Model Number: CG-SP500
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Cases
Delivery Time: 30 days after deposit arrives
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000 Unit Per Year
Contact Now
Detailed Product Description
Material: SS304/SS316 Type: Screw Type
Operation: Full Automatic Capacity: 10-5000 M3/d
Weight: 300-1500KG Size: OEM
High Light:

frp sand filter vessel

,

water pressure tank

Automatic Sewage Treatment Equipment Screw Type SS304 / SS316 Material



Description



  Screw Press Sludge Dewatering Machine is widely used in municipal wastewater treatment engineering, petrochemical, light industry, chemical fiber, paper making, pharmaceutical, leather and other industries.



The actual operation shows that the sludge dewatering can create considerable economic benefits and social benefits for the customers.



Automatic Sewage Treatment Equipment Screw Type SS304 / SS316 Material 0

Main Parts



Sludge concentration & dewatering Body;



Flocculation & Conditioning Tank;



Integrate Automatic Control Cabinet;



Filtrate Collection TankAutomatic Sewage Treatment Equipment Screw Type SS304 / SS316 Material 1



Working Principle







Automatic Sewage Treatment Equipment Screw Type SS304 / SS316 Material 2



Force-water concurrent;

Thin-layer dewatering;

Moderate press;

Extension of the dewatering path.



It has solved several technical problems of other similar sludge dewatering equipment including belt presses, centrifuge machines, plate-and-frame filter press have, which are frequent clogging, low concentration sludge / oil sludge treatment failure, high energy consumption and complicated operation etc.



Dewatering Picture

 Automatic Sewage Treatment Equipment Screw Type SS304 / SS316 Material 3







Parameter
Model DS Standard handling capacity(kg/h) Sludge flow(m³/h) Dimension(mm)

Net weight

(kg)

Function weight

(kg)

High concentration Low concentration

10000

mg/l

20000

mg/h

25000

mg/h

50000

mg/h

L W H
131 10 5 0.5 0.5 0.4 0.2 1870 730 1170 250 395
132 20 10 1 1 0.8 0.4 2000 960 1230 350 595
133 30 15 1.5 1.5 1.2 0.6 2000 1190 1230 450 795
251 30 15 1.5 1.5 1.2 0.6 2690 880 1600 500 805
252 60 30 3 3 2.4 1.2 2810 1120 1600 800 1320
253 90 45 4.5 4.5 3.6 1.8 2810 1360 1600 1100 1820
301 60 30 3 3 2.4 1.2 3310 1000 1700 750 1275
302 120 60 6 6 4.8 2.4 3500 1300 1700 1340 2225
303 180 90 9 9 7.2 3.6 3700 1650 1700 1750 3030
304 240 120 12 12 9.6 4.8 4000 2050 1750 2150 4150
351 100 50 5 5 4 2 3610 1100 1850 1150 1915
352 200 100 10 10 8 4 3820 1490 1850 1950 3205
353 300 150 15 15 12 6 4120 1770 1850 2800 4830
354 400 200 20 20 16 8 4320 2290 1850 3700 6515
401 160 80 8 8 64 3.2 4550 1180 2250 2050 3425
402 320 160 16 16 12.8 6.4 4870 1710 2250 3850 6645
403 480 240 24 24 19.2 9.6 4790 2550 2250 5400 9710
404 640 320 32 32 25.6 12.8 4840 3140 2250 7000 12960




Package

Automatic Sewage Treatment Equipment Screw Type SS304 / SS316 Material 4

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request.



Delivery time: 3~45 days after confirming order, the detailed delivery date should be decided by the production season and order quantity.
