Product Details:
Place of Origin: China
Brand Name: Changier
Certification: CE/ISO9001
Model Number: Silicone-D65
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T
Supply Ability: 10000 Sets Per Month
Contact Now
Detailed Product Description
Material: Silicone Membrane Size: Dia 65*1000mm
Weight: 2KG Bubble Size: 1~3mm
Color: White Driven Type: Pneumatic
High Light:

chemical dosing unit

,

chlorine dosing system

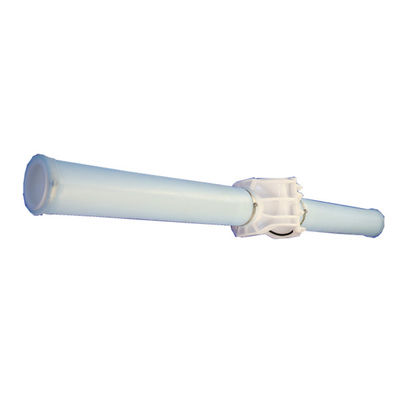

Sewage Disposal Chemical Dosing System Membrane Diffuser Air Aeration Diffusion



Description



    Fine Bubble Tube Diffuser can be connected on one side or in pairs to different rectangular and round tubes (ABS material) with the appropriate adapter.



    The membranes are manufactured with premium quality silicone material and are available with fine or coarse-bubble perforation.The support tubes(ABS or PVC material)can be reused when membranes are replaced. The units offer maximum performance at minimum cost and require minimum maintenance.



   Silicone memberane ABS tube air diffusion for sewage disposal, which is used to transfer air and with that oxygen into sewage or industrial wastewater. Oxygen is required by microorganisms in the water to break down the pollutants. Sinta air disc fine bubble diffuser series combines effective design, how installation costs, reliability and high performance in intermittent and continuous aeration processes. Special designed the slits cut opining, patters and spacing between the slits for high oxygen transfer and longtime operation.



Sewage Disposal Chemical Dosing System Membrane Diffuser Air Aeration Diffusion 0

1. High oxygen transfer efficiency



2. Low cost of total ownership



3. Anti-clogging, corrosion resistant



4. Ease of installation,2 minutes for one diffuser



5. Maintenance-free design, 8 years service life



6. SILICONE membrane with excellent performance





Technical Data



Material EPDM Silicone TPU
Specification D65-1000 D90-1000 D65-1000 D90-1000 D65-1000 D90-1000
Supporting BodyDiameter(mm) 63 90 63 90 63 90
Membrane Diameter(mm) 65 92 65 92 65 92
Membrane Thickness(mm) 2±0.1 2±0.1 1.6±0.1 1.6±0.1 0.6+0.1 0.6+0.1
Bubble Diameter(mm) 1~3 1~3 1~3 1~3 1~3 1~3
Air Flow Range(Nm3/h) 2~12 3~18 2~12 3~18 2~12 3~18
Normal Air Flow(Nm3/h) 8 12 8 12 8 12
Max Working Temperature(℃) 80 80 100 100 100

                    100







































Application



1. Municipal wastewater treatment



2. Industrial wastewater treatment



3. Clean water treatment



4. Sludge stabilization



5. Wastewater ozone diffusion



6. Aeration of fish ponds



7. Aeration of streams and lakes



Sewage Disposal Chemical Dosing System Membrane Diffuser Air Aeration Diffusion 1

Sewage Disposal Chemical Dosing System Membrane Diffuser Air Aeration Diffusion 2
