CE ISO9001 Stainless Steel Mechanical Fine Bar Screen Rotary Drum Fine Screen

CE ISO9001 Stainless Steel Mechanical Fine Bar Screen Rotary Drum Fine Screen

  • CE ISO9001 Stainless Steel Mechanical Fine Bar Screen Rotary Drum Fine Screen
  • CE ISO9001 Stainless Steel Mechanical Fine Bar Screen Rotary Drum Fine Screen
  • CE ISO9001 Stainless Steel Mechanical Fine Bar Screen Rotary Drum Fine Screen
  • CE ISO9001 Stainless Steel Mechanical Fine Bar Screen Rotary Drum Fine Screen
  • CE ISO9001 Stainless Steel Mechanical Fine Bar Screen Rotary Drum Fine Screen
  • CE ISO9001 Stainless Steel Mechanical Fine Bar Screen Rotary Drum Fine Screen
  • CE ISO9001 Stainless Steel Mechanical Fine Bar Screen Rotary Drum Fine Screen
CE ISO9001 Stainless Steel Mechanical Fine Bar Screen Rotary Drum Fine Screen
Product Details:
Place of Origin: Jiangsu,China
Brand Name: Changier
Certification: ISO9001,CE
Model Number: GS-700
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Cases
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Material: Customized Application: Wastewater Treatment Remove Bigger Rejects
Width Of Grid: 1000-5000mm Power: 0.37-1.5kw
Product Name: Mechanical Fine Bar Screen Weight: 200-2000kg
Warranty: 1 Year
High Light:

ISO9001 Mechanical Fine Bar Screen

,

ISO9001 Rotary Drum Fine Screen

,

CE Mechanical Fine Bar Screen

Hot Selling Solid Liquid Separator Fine Trommel Stainless Steel Rotary Drum Filter Wastewater Mechanical Rake Bar Screen

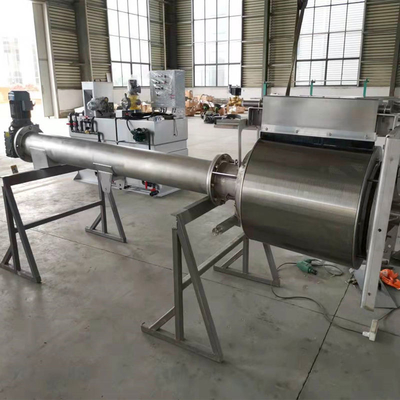

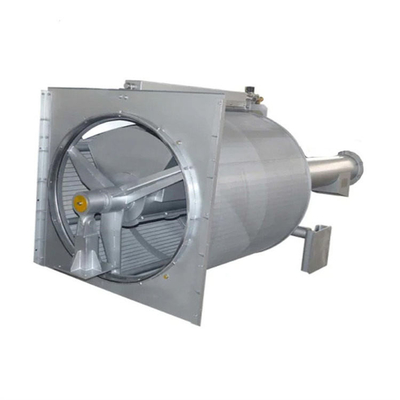

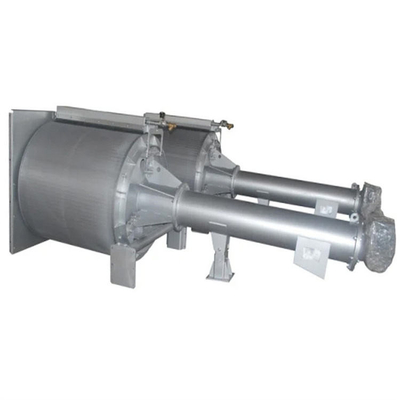

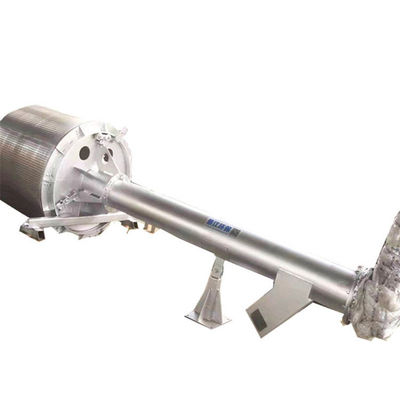

Product Pictures



The Rotary Drum Fine Screen has four functions such as intercepting dregs, getting rid of dregs, spiral lifting and pressing dewatering. It is mounted in the channel with the angles of 35 degrees, and the wastewater flows into the drum from the port of the drum, and the grid can intercept the dregs. Then the drum rotates at a fixed speed, and the nylon brush and flush water spray nozzle above the drum can get rid of dregs and export them through spiral lifting. The dewatered and pressed dregs will be delivered to the container or the transportation equipment. The whole process is clear and no smell.

Produc Attribute
Model 600 800 1000 1200 1400 1600 1800 2000 2200 2400 2600
Liquid speed(m/s) 1.0





Water flow rate

(m³/h)





Screen gap(mm)

0.5 80 135 240 310 450 585 745 920 1130 1380 2080
1 125 220 370 510 720 955 1210 1495 1800 2150 3280
2 190 330 560 765 1100 1440 1830 2260 2730 3250 4530
3 230 400 685 935 1340 1760 2235 2760 3330 3970 5450
4 240 430 720 1010 1440 2050 2700 3340 4030 4680 6230
5 250 470 795 1110 1570 2200 2935 3600 4360 5220 6750

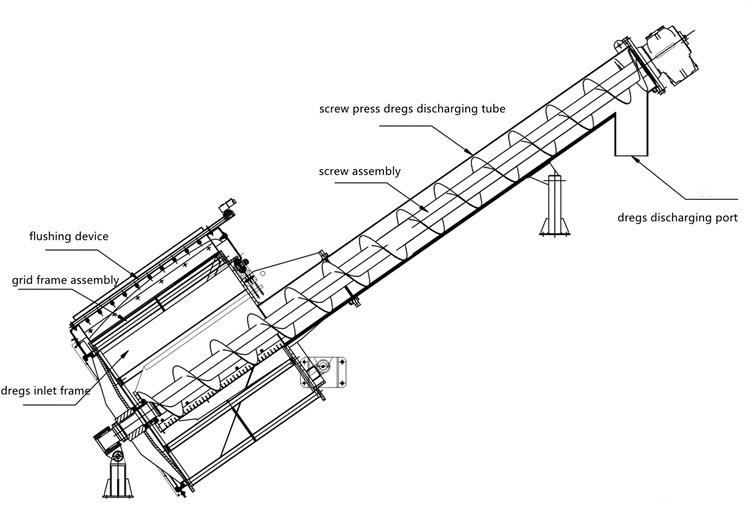

Structure Diagram

Hot Selling Solid Liquid Separator Fine Trommel Stainless Steel Rotary Drum Filter Wastewater Mechanical Rake Bar Screen In WWTP

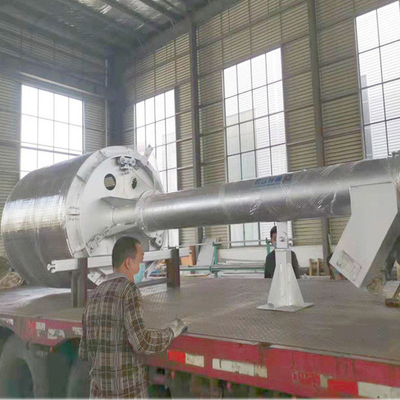

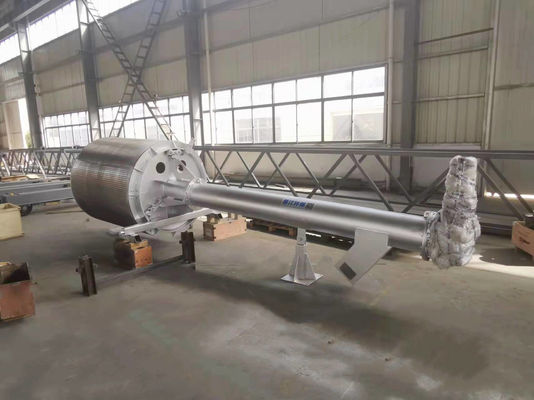

production site

Hot Selling Solid Liquid Separator Fine Trommel Stainless Steel Rotary Drum Filter Wastewater Mechanical Rake Bar Screen In WWTP



Our equipments covers: screw press sludge dewatering machine, polymer dosing machine, screw conveyor, sludge hopper, wastewater

treatment machine, solid-liquid separator, sand-water separator etc. Our products are widely used in municipal sewage, petrochemical,

food and beverage, aquaculture and slaughter, oil and starch, chemical pharmacy, iron and steel metallurgy, textile printing and dyeing,

electric power and papermaking industries. Pujiang equipments, which enjoy high praise from our customers, are sold across China and

exported abroad.
