Protect Water Resources For Our Planet
 |
| Place of Origin: | Jiangsu,China |
| Brand Name: | Changier |
| Certification: | CE/ISO9001 |
| Model Number: | JY-100 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30 days after deposit arrives |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 Units Per Year |
| Application: | Chemical Dosing Treatment | Name: | Chemical Dosing System |
|---|---|---|---|
| Warranty: | 12 Months | Control Type: | PLC Control |
| Certificate: | CE/ISO9001 | Brand: | CHANGIER CHINA |
| Weight: | 950kg | Productivity: | 5000L/h |
| High Light: | PAC Chemical Polymer Dosing Machine,PAM Chemical Polymer Dosing Machine,PAM Chemical Dosing System |
||
|
Model
|
Capacity
(L/h) |
Powder hopper
capacity (L) |
Material
|
Power
(KW)
|
Dimension L*W*H
(mm) |
Weight
(kg) |
|
TNW-500L
|
500
|
65
|
SUS304
|
0.99
|
1400*1520*1870
|
280
|
|
TNW-1000L
|
1000
|
65
|
SUS304
|
0.99
|
2000*1300*1660
|
410
|
|
TNW-2000L
|
2000
|
65
|
SUS304
|
1.36
|
2440*1520*1965
|
550
|
|
TNW-4000L
|
4000
|
65
|
SUS304
|
1.36
|
3000*1800*2115
|
680
|
|
TNW-5000L
|
5000
|
65
|
SUS304
|
3.55
|
4000*1550*1830
|
960
|
|
TNW-6000L
|
6000
|
65
|
SUS304
|
3.55
|
4000*1800*2080
|
1050
|
|
TNW-8000L
|
8000
|
65
|
SUS304
|
4.65
|
4500*1800*2100
|
1280
|
|
TNW-10000L
|
10000
|
100*2
|
SUS304
|
4.9
|
5000*1800*2100
|
1560
|
Please kindly tell us the following necessary information:
1.What kind of chemical liquid you need to produce?
2.What is the generated chemical liquid concentration(%) you need?
3.What is the production capacity(L/hour) of the chemical liquid you need?

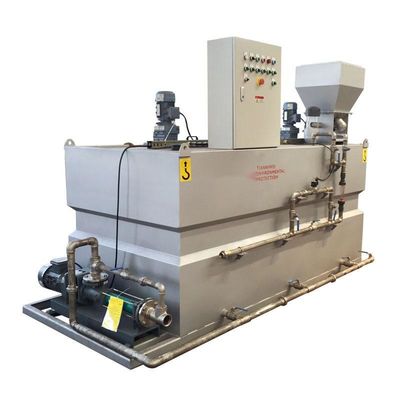

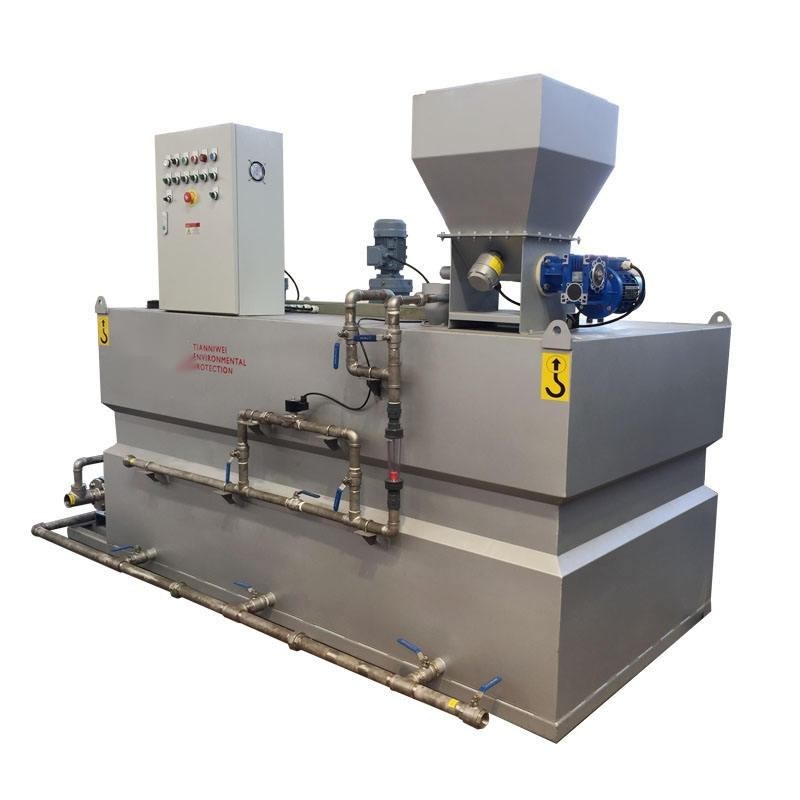

Under the control of the electric control cabinet, dry chemical powder in the hopper and water from pipeline enters into the wet-dry mixer in a constant speed to get the preliminary mixture. Then the mixture is injected into mixing tank of the full automatic chemical dosing system. There are three kinds of mixing tanks, first one is the precast tank, second one is the maturation tank, and last one is the storage tank. There is a mixer in each tank. There is a baffle plate which is shorter than tank height to separate each tank, this design makes sure that only after complete mixing, the chemical liquid will enter into next tank. The chemical liquid produced by complete mixing in three tanks is stored in the last tank, and can be transported to the next equipment by using screw pump and pipeline.
Q: Are you trading company or manufacture?
A: We are both manufacture and trading company. We have over 20 years' professional experience as a waste water treatment equipment manufacturer and engineering service enterprise.
Q: Where is your factory located?
A: Yangzhou City, which is very close to Shanghai with only less than 3 hours' driving.
Q: Do you provide OEM service?
A: Yes. Any required logos is available.
Q: How about the production capacity of your company?
A: Our factory covers area over 20,000M2 and produces machines 2000 sets per year.
Q: How could we trust you and your company? This is first time transaction?
A: Our company has more than 20 years professional experience. We cooperate over 1000 customers in China and overseas. We export nearly 40 countries all over the world. Welcome to our company and watch our plant production condition any time.
Q: What certificates do you have?
A: CE/ISO/SGS
Q: Do you offer after-sales service?
A: Yes. Engineers available.
Q: How long is your warranty?
A: One year after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.
Q: What about your delivery time?
A: Normally within 45 days against down payment.
Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.
Q: What kind of payment do you accept?
A: T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
Q: What kind of transportation do you offer?
A: Customers decide freight mode, Air, Land & Sea
