Biological Industry MBR Water Treatment Plant For Wastewater Treatment
Product Details:
Place of Origin: Jiangsu,China
Brand Name: Changier
Certification: ISO9001,CE
Model Number: MBR-70
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Cases
Delivery Time: 45 Days
Payment Terms: T/T, L/C,
Supply Ability: 100 Unit Per Year
Contact Now
Detailed Product Description
Capacity: 2-200m3/h Usage: Biological Industry
Product Name: MBR Module Membrane Material: PVDF+PE
Type: MBR For Printing And Dyeing Power: 1.5kw-5kw
High Light:

Industry MBR Water Treatment Plant

,

Biological MBR Water Treatment Plant

Biological Industry Use MBR Water Treatment Plant For Wastewater Treatment

Details Images
Biological Industry MBR Water Treatment Plant For Wastewater Treatment 0
Features
♦New curtain style structure
♦Simple structure, easy maintenance, avoided the gather in membrane root of fiber, hair and sludge
♦Patented spinning technology, special support structure, solved the broken-silk problem
♦Good hydrophilicity, more stable operating flux
♦High filtration accuracy, not easy to be pollution clogging , good permeate quality
Biological Industry MBR Water Treatment Plant For Wastewater Treatment 1

Hydrophilic and moisturizing membrane

Reinforced composite PVDF membrane uses hydrophilic modified PVDF raw materials, the membrane has good hydrophilicity, and no hydrophilic treatment is needed in the site. However, if the diaphragm is not put into use immediately after it is installed, or it needs to be parked for a certain period of time during use, please ensure that the diaphragm is immersed in water or it is always in a wet condition.
Biological Industry MBR Water Treatment Plant For Wastewater Treatment 2

Maintenance of membrane flux and membrane cleaning

Diaphragm aeration system construction using perforated aeration, aeration of bubbles and water flow, so that the film full of jitter, to achieve self-cleaning of the membrane. Using the intermittent operation mode, the self-priming pump can suck for 10 to 12 minutes and stop for 2 to 3 minutes, which can effectively prevent the clogging of the membrane holes and ensure long-term and stable operation of the membrane separation. When used for the first time, the microbiological culture of the biochemical pool achieves good activity, and the membrane is only put into operation when the viscosity is small.
Parameter Table
Biological Industry MBR Water Treatment Plant For Wastewater Treatment 3
PVDF material MBR membrane sheet technical parameters:
Model
MBR-PVDF-4.5
MBR-PVDF-10
MBR-PVDF-16
Module length
750MM
980MM
1500MM
Module width
530MM
650MM
850MM
Outlet diameter
25MM
32MM
40MM
Module membrane
area
4.5M²
10M²
16 M²
Interception pore
diameter
0.1micron
0.1micron
0.1micron
Turbidity of water
output
<1NTU
<1NTU
<1NTU
Tolerance range of
temperature
5-45℃
5-45℃
5-45℃
Tolerance range of
PH value
2-12
2-12
2-12
Flow of producing
water
1-1.5 M³/D
2.4-6 M³/D
3.5-9 M³/D
Max
transmembrane
pressure(TMP)
-0.05MPA
-0.05MPA
-0.05MPA
Type of water output
Negative pressure suction
Chemical cleaning
agents
Citric acid / sodium hydroxide / sodium hypochlorite
1. Technical parameters in the table are factory inspection value under standard testing conditions;
2. The flow is producing water flow when the product is used in MBR sewage treatment;
MBR Membrane design flux reference table:
Mbr Membrane design flux reference table
Type of sewage
design run membrane flux l/m2. h
The maximum operating membrane flux L/m2 is allowed when the water fluctuates greatly. h
remarks
Secondary settling tank effluent
23-25
30
Standard effluent, pure membrane filtration
Domestic / Municipal Waste Water
19-22
25
Good biodegradability
Aquaculture wastewater
17-18
22
Good biochemistry
industrial sewage
15-16
17-18
General biodegradability
Landfill Leachate
10--11
13-14
General biodegradability
Directions: L/m2. h refers to the water output of a flat rice film for an hour in units such as:19L/m2. h Refers to 19 litres of effluent from a flat rice membrane for an hour
For large-scale mbr film projects, especially for complex industrial wastewater, it is best to explore and verify the process and design parameters by trial or pilot tests
Biological Industry MBR Water Treatment Plant For Wastewater Treatment 4
Biological Industry MBR Water Treatment Plant For Wastewater Treatment 5

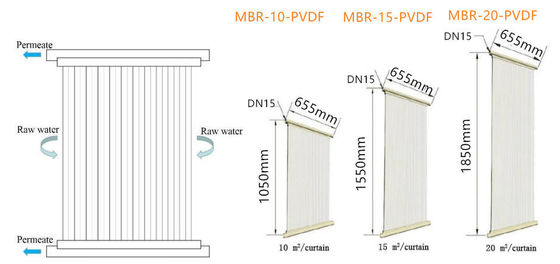

Common Specifications
Biological Industry MBR Water Treatment Plant For Wastewater Treatment 6
Biological Industry MBR Water Treatment Plant For Wastewater Treatment 7
MBR Process Flow Chart
Biological Industry MBR Water Treatment Plant For Wastewater Treatment 8

Equipments Exhibition
Biological Industry MBR Water Treatment Plant For Wastewater Treatment 9
Biological Industry MBR Water Treatment Plant For Wastewater Treatment 10
Inventory Display
Biological Industry MBR Water Treatment Plant For Wastewater Treatment 11
Biological Industry MBR Water Treatment Plant For Wastewater Treatment 12
Biological Industry MBR Water Treatment Plant For Wastewater Treatment 13
Raw Material Display
Biological Industry MBR Water Treatment Plant For Wastewater Treatment 14

Biological Industry MBR Water Treatment Plant For Wastewater Treatment 15

Biological Industry MBR Water Treatment Plant For Wastewater Treatment 16

Biological Industry MBR Water Treatment Plant For Wastewater Treatment 17

1.Can we get samples?
Yes, 1kg free samples can supply .
2.What's Your Delivery Time?
Normally 15-20days afater order confirm.
3.What is MOQ?
Our MOQ is 1CBM .
4.Are You Factory Or trading Company?
We’re a direct factory in Anqing Anhui China.
5.How About Container Quantity?
1*20GP can load 30CBM
1*40HQ can load 70CBM
6.What's Your Packing?
Packing is woven bag;0.1m3/1m3 per bag
