MBR Submerged Flat Sheet Membrane With Excellent Chemical Stability

Product Details:

Place of Origin:	Jiangsu,China
Brand Name:	Changier
Certification:	ISO9001,CE
Model Number:	MBR-70

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Wooden Cases
Delivery Time:	45 Days
Payment Terms:	T/T, L/C,
Supply Ability:	100 Unit Per Year

Contact Now

Detailed Product Description

Capacity:	2-200m3/h	Usage:	Biological Industry
Product Name:	MBR Module	Membrane Material:	PVDF+PE
Type:	MBR For Printing And Dyeing	Power:	1.5kw-5kw
Highlight:	MBR Submerged Flat Sheet Membrane , PVDF Flat Sheet Membrane

MBR Submerged Flat Sheet Membrane With Excellent Chemical Stability

Product Details

Hydrophilic and moisturizing membrane

Reinforced composite PVDF membrane uses hydrophilic modified PVDF raw materials, the membrane has good hydrophilicity, and no hydrophilic treatment is needed in the site. However, if the diaphragm is not put into use immediately after it is installed, or it needs to be parked for a certain period of time during use, please ensure that the diaphragm is immersed in water or it is always in a wet condition.

Maintenance of membrane flux and membrane cleaning

Diaphragm aeration system construction using perforated aeration, aeration of bubbles and water flow, so that the film full of jitter, to achieve self-cleaning of the membrane. Using the intermittent operation mode, the self-priming pump can suck for 10 to 12 minutes and stop for 2 to 3 minutes, which can effectively prevent the clogging of the membrane holes and ensure long-term and stable operation of the membrane separation. When used for the first time, the microbiological culture of the biochemical pool achieves good activity, and the membrane is only put into operation when the viscosity is small.

Product Parameters

PVDF material MBR membrane sheet technical parameters:

Model	MBR-PVDF-4.5	MBR-PVDF-10	MBR-PVDF-16
Module length	750MM	980MM	1500MM
Module width	530MM	650MM	850MM
Outlet diameter	25MM	32MM	40MM
Module membrane area	4.5M²	10M²	16 M²
Interception pore diameter	0.1micron	0.1micron	0.1micron
Turbidity of water output	＜1NTU	＜1NTU	＜1NTU
Tolerance range of temperature	5-45℃	5-45℃	5-45℃
Tolerance range of PH value	2-12	2-12	2-12
Flow of producing water	1-1.5 M³/D	2.4-6 M³/D	3.5-9 M³/D
Max transmembrane pressure(TMP)	-0.05MPA	-0.05MPA	-0.05MPA
Type of water output	Negative pressure suction
Chemical cleaning agents	Citric acid / sodium hydroxide / sodium hypochlorite
1. Technical parameters in the table are factory inspection value under standard testing conditions; 2. The flow is producing water flow when the product is used in MBR sewage treatment;

MBR Membrane design flux reference table:

Mbr Membrane design flux reference table
Type of sewage	design run membrane flux l/m2. h	The maximum operating membrane flux L/m2 is allowed when the water fluctuates greatly. h	Remarks
Secondary settling tank effluent	23-25	30	Standard effluent, pure membrane filtration
Domestic / Municipal Waste Water	19-22	25	Good biodegradability
Aquaculture wastewater	17-18	22	Good biochemistry
industrial sewage	15-16	17-18	General biodegradability
Landfill Leachate	10--11	13-14	General biodegradability
Directions: L/m2. h refers to the water output of a flat rice film for an hour in units such as:19L/m2. h Refers to 19 litres of effluent from a flat rice membrane for an hour
For large-scale mbr film projects, especially for complex industrial wastewater, it is best to explore and verify the process and design parameters by trial or pilot tests

MBR Process Flow Chart

Features

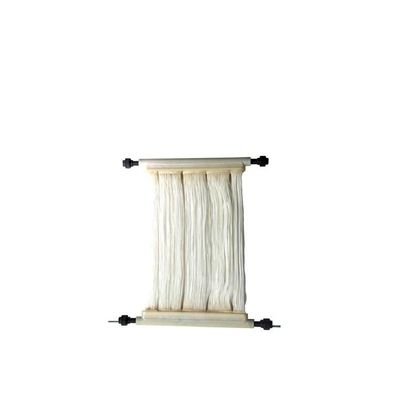

♦New curtain style structure
♦Simple structure, easy maintenance, avoided the gather in membrane root of fiber, hair and sludge
♦Patented spinning technology, special support structure, solved the broken-silk problem
♦Good hydrophilicity, more stable operating flux
♦High filtration accuracy, not easy to be pollution clogging , good permeate quality

Packaging Display

1.How to change the membrane sheet?
Due to unique design of the flat membrane module, flat membrane can be replaced one sheet for one time, without changing support.
2.How to clean/wash the membrane sheet?
You can clean the membrane cartridges in-situ: stop the blower and switch valves, pour the chemical for 10 minutes, keep intact for a few hours.
3.How often should the membrane be washed?
Usually chemical cleaning should be carried out every half a year.
4.How to install after the equipment arriving destination?
We will provide detailed illustrations to you. If necessary, we will send technicians to help you.
