Capacity: | 2-200m3/h | Usage: | Biological Industry |
---|---|---|---|
Product Name: | MBR Module | Membrane Material: | PVDF+PE |
Type: | MBR For Printing And Dyeing | Power: | 1.5kw-5kw |
High Light: | MBR Hollow Fiber Membrane,MBR Hollow Fiber Membrane 15M2 |
Hollow Fiber MBR Introduction
Membrane Bioreactor (MBR) is a new type of wastewater treatment technology that combines high-efficiency membrane separation technology with biochemical technology. The hollow fiber membrane module directly performs solid-liquid separation in the biochemical pool, replacing the secondary sedimentation tank in the activated sludge method, and effectively achieves the purpose of muddy water separation. The high-efficiency retention effect of the membrane allows the nitrifying bacteria to be completely retained in the bioreactor, so that the nitrification reaction can be smoothly carried out, the ammonia nitrogen can be effectively removed, the sludge can be avoided, and the macromolecular organic matter which is difficult to degrade can be retained at the same time, and the The residence time of the reactor is maximized. After applying MBR technology, the main pollution removal rate can reach: COD≥93%, the suspended solids and turbidity are close to zero, the water quality is good and stable, and it can be directly reused to realize the sewage resource.
Hollow Fiber MBR Advantages
1. High strength:
Reinforced composite PVDF hollow fiber membrane adopts unique support layer membrane technology, which makes its tensile strength and compressive strength much higher than ordinary hollow fiber membrane, and the single membrane filament tensile force is greater than 50KG. It is aptly called "pull continuous film".
2. Good anti-pollution performance:
Reinforced composite PVDF hollow fiber membrane adopts PVDF alloy formula as its filtration layer, and its ultra-smooth membrane surface characteristics and unique charge performance make it have strong anti-pollution performance.
3. Super-large flux:
The reinforced composite PVDF hollow fiber membrane adopts a relatively independent special support layer technology and PVDF alloy membrane filtration layer technology, and the formed filter layer has high porosity, and the produced membrane not only has high strength but also good flux.
4. Good retention performance:
The reinforced composite PVDF hollow fiber membrane adopts PVDF alloy membrane as the filtration layer, and its special inner and outer dense double skin structure makes it have excellent retention performance.
5. The cleaning flux recovery is good:
The reinforced composite PVDF hollow fiber membrane adopts PVDF alloy membrane as the filtration layer, and its special inner and outer dense double skin structure makes the pollutants only stay on the outer surface of the membrane and does not enter the membrane network. Inside the hole, it is very easy to clean and the cleaning flux is restored.
6. The reinforced composite PVDF membrane module can be modularized, compact in structure, small in footprint, and easy to use in combination.
7. Reinforced composite PVDF sewage treatment special diaphragm has a long service life, generally can reach 3-5 years.
8. The composite PVDF membrane has good chemical stability, acid and alkali resistance, bacterial corrosion resistance and good oxidation resistance.
9. The membrane module is provided with an aeration tube to wash the membrane wire with water and water to maintain the flux of the membrane. The surface of the membrane fiber can also be cleaned by the aeration process of the biochemical pool to maintain a stable water production.
Hollow Fiber MBR Performance Parameter
Model No. | MBR-10-PVDF | MBR-15-PVDF | MBR-20-PVDF |
Membrane Area | 10m2 | 15m2 | 20m2 |
Air Flow Rate | 3.5-4 m3/h.pcs | 4-4.5 m3/h.pcs | 4.5-5 m3/h.pcs |
Length | 1010mm | 1515mm | 2020mm |
Width | 535mm | 535mm | 535mm |
Thickness | 45 mm | 45 mm | 45 mm |
Porosity | 50-70% | ||
Longitudinal strength | ≥ 120 MPa | ||
Outlet | 32mm | ||
Air Inlet | NA/DN25 | ||
Fitting Material | ABS/UPVC | ||
Membrane Material | PVDF | ||
Average Intercepting Aperture | 0.05μm | ||
Hollow Fiber Inner | 1.1mm | ||
Hollow Fiber Outer | 2.2mm | ||
Working Pressure | -0.01~-0.05 MPa | ||
Water Turbidity | < 1 NTU | ||
Effluent suspended solids | < 1 mg/L | ||
Life | 3-5 years | ||
Packaging Material | PU/EPOXY | ||
Temperature Range | 5-40℃ | ||
Feed Water Residual Chlorine | 0-200 ppm | ||
Washing Residual Chlorine | 0-5000 ppm | ||
PH Range | 2-11 (washing pH range: 1-12) | ||
Water Production Flow | 10-30L/ m2.h (according to different feed water) | ||
Maximum Transmembrane Pressure Difference | -0.08 MPa | ||
Outlet Way | Negative Pressure Suction | ||
Running Way | Working 8min, Stop 2min | ||
Chemical Sterilization Pharmacy | Sodium Hypochlorite | ||
Chemical Cleaning Cycle | 6-12 months | ||
Chemical Cleaning Pharmacy | Citric Acid/Sodium Hypochlorite | ||
MBR system recommended design flow rate
Feed Water | Design Flow Rate(L/M2.H) |
domestic sewage | 15-20 |
industrial sewage with low load | 10-15 |
industrial sewage with high load | 8-10 |
garbage permeate | 6-8 |
Feed water limited
animal and vegetable oil | ≤15 mg/L |
mineral oil | ≤2 mg/L |
Particle size | ≤2 mm |
calcium and magnesium ions | Properly increase the biochemical residence time according to the actual situation |
BOD |
0.05-0.15 (kg-BOD/kg activated sludge·d) (standard value is 0.07) |
Activated sludge limited
MLSS | 3,000~12,000mg/L (Better:5000~10000mg/L) |
Temperature | 5-40℃ (Better: 15-35℃) |
MBR with frame Design
Model No. | MBR-220TPD | HF-MBR-220TPD |
Production Flux | 220-234 m3/day | 220-234 m3/day |
Unit Model | MBR-10-PVDF | MBR-15-PVDF |
Quantity of the Unit | 78 units(10 square meter) | 52 units(15square meter) |
Membrane Area | 780 m2 | 780 m2 |
Outlet | DN50 | DN50 |
Inlet | DN80 | DN80 |
Frame Quantity | 2 | 2 |
Single Frame Length | 3900 mm | 2600 mm |
Single Frame Width | 800 mm | 800 mm |
Single Frame Height | 1300 mm | 1800 mm |
Liquid Level | >1600 mm | >2100 mm |
Single Frame Air Flow Rate | 390 m3/h | 260 m3/h |
Frame Spacing | 300-500 mm | 300-500 mm |
Recommended Aeration (Gas to Water Ratio) |
>15:1 | >15:1 |
Frame Material | Stainless Steel Tube PVC Slot | Stainless Steel Tube PVC Slot |

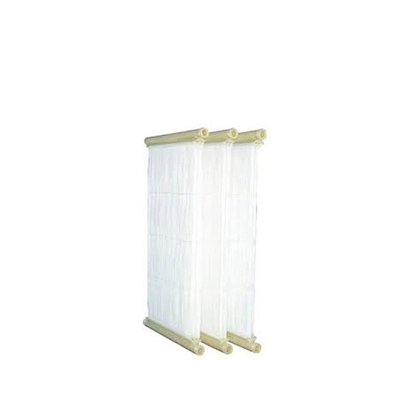

Hollow Fiber MBR Module Pictures
