Automatic Chemical Dosing System For Cooling Towers Auto Dosing Machine

Automatic Chemical Dosing System For Cooling Towers Auto Dosing Machine

  • Automatic Chemical Dosing System For Cooling Towers Auto Dosing Machine
  • Automatic Chemical Dosing System For Cooling Towers Auto Dosing Machine
  • Automatic Chemical Dosing System For Cooling Towers Auto Dosing Machine
  • Automatic Chemical Dosing System For Cooling Towers Auto Dosing Machine
  • Automatic Chemical Dosing System For Cooling Towers Auto Dosing Machine
Automatic Chemical Dosing System For Cooling Towers Auto Dosing Machine
Product Details:
Place of Origin: Jiangsu,China
Brand Name: Changier
Certification: CE/ISO9001
Model Number: JY-100
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 30 days after deposit arrives
Payment Terms: T/T, L/C
Supply Ability: 1000 Units Per Year
Contact Now
Detailed Product Description
Application: Chemical Dosing Treatment Name: Chemical Dosing System
Warranty: 12 Months Control Type: PLC Control
Certificate: CE/ISO9001 Brand: CHANGIER CHINA
High Light:

ISO9001 Automatic Chemical Dosing System

,

PLC Control Chemical Dosing System

Automatic Chemical Dosing System For Cooling Towers Auto Dosing Machine

Polymer Preparation Dosing System

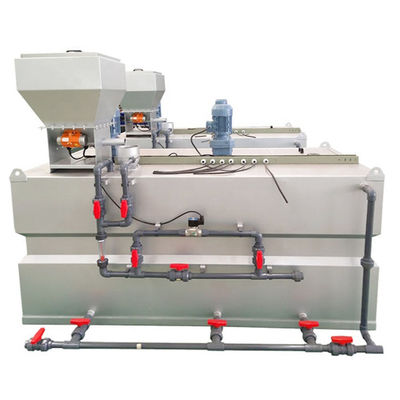

Automatic Chemical Dosing System is a auxiliary auto-equipment, which can prepare and throw polymer solution continually. It can complete the chemical combination and mixing of the polymer continually and efficiently in order to obtain homogeneous and activated solutions. The equipment can be widely used in municipal wastewater treatment, sludge dewatering treatment and other technical treatment.
The device is an automatic continuous configuration and dosing system of powder medicament. The dry powder agent enters the premix from the screw propeller at the bottom of the hopper to premix with water. The wet material enters the preparation tank to dilute and mix. When the liquid level in the storage tank is at a high level, the preparation process will stop automatically. When the solution drops to a low level, the batching process will start automatically. The preparation tank and the curing tank are equipped with agitators to dilute and mature the agents. The mixture flow and concentration can be determined by adjusting the inlet flow and the rotating speed of the screw shaft.
Automatic Chemical Dosing System For Cooling Towers Auto Dosing Machine 0
Advantages
1.Working with 3-tank integration, easy to operate, maintain, cost saving; 2.The dry speculation is accurately transported,dry powder is added. The water inflow is adjustable, required concentration of liquid medicine can be configured; 3. The powder feeder has the functions of heat preservation, heating and anti condensation to avoid caking or deterioration; 4.The electric control cabinet controls the whole preparation process to make the preparation solution fusion even; 5. The alarm system is to remind the operator of feeding at any time to realize continuous operation; 6. The powder feeder can be equipped with RPM LCD screen to accurately control the feeding speed and concentration; 7. Tank: SS304 SS316, PP, HDPE.

Dosing rate (L/h)
Tank Volume (L)
Influent volume (m3/h)
Aging time (h)
Inlet/dosing pipe
Vent pipe
Overflow pipe
Dimension(cm)
Weight
Power(kw)
200
350
0.12-0.6
1.0-1.5
DN20
DN20
DN32
940/860*470/520*1450
250
0.54
430
750
0.3-1.5
DN25
DN25
DN32
1370/1290*680/730*1450
350
0.92
958
1580
0.6-3
DN25
DN25
DN40
1800/1720*900/950*1620
480
1.3
1340
2200
0.8-4
DN32
DN25
DN40
2130/2050*1070/1120*1620
560
1.7
2660
4050
1.6-8
DN40
DN40
DN50
2450/2370*1220/1270*2000
790
2.4
4165
6170
2.4-12
DN40
DN40
DN65
2780/2700*1390/1440*2250
1050
3.2
6660
9610
4.2-20
DN50
DN40
DN65
3100/3020*1550/1600*2650
1200
4.8
10940
15780
6-30
DN65
DN50
DN80
3970/3890*1990/2040*2650
1450
6.4

Automatic Chemical Dosing System For Cooling Towers Auto Dosing Machine 1

FAQ
Q: Are you trading company or manufacture?
A: We are both manufacture and trading company. We have professional experience as a waste water treatment equipment manufacturer
and engineering service enterprise.

Q: Where is your factory located?
A: Weifang City, Shandong Province, China, closed to Qingdao Port.

Q: Do you provide OEM service?
A: Yes. Any required logos is available.

Q: Do you offer after-sales service?
A: Yes. Engineers available.

Q: How long is your warranty?
A: One year after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts
free of charge.

Q: What about your delivery Time?
A: Normally within 45 days against down payment.

Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.

Q: What kind of payment do you accept?
A: T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM

Q: What kind of transportation do you offer?
A: Customers decide freight mode, Air, Land & Sea
