Protect Water Resources For Our Planet

|
| Place of Origin: | Wuxi,Jiangsu |
| Brand Name: | Changier |
| Certification: | CE/NSF |
| Model Number: | FRP-0835 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Normal |
| Delivery Time: | 45 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Units Per Year |

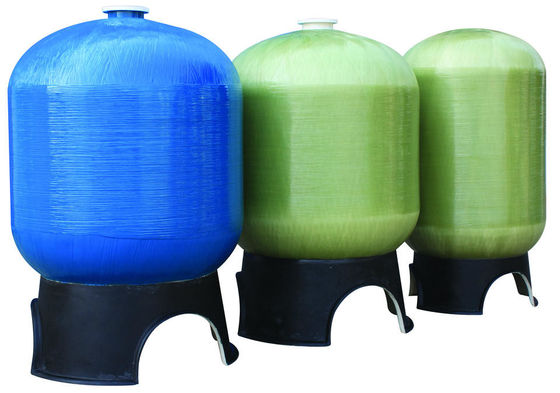

| Warranty: | 3 Years | Product Name: | FRP Pressure Vessel |
|---|---|---|---|
| Working Pressure: | 150 Psi | Working Temperature: | 34-150°F(1-49℃) |
| Type: | Water Softener Parts | Weight: | 20~200kgs |
| Highlight: | 20Gallon Fiber Glass Pressure Vessel,1265 2.5 Opening RO Vessel |
||
|
item
|
value
|
|
Place of Origin
|
Jiangsu,China
|
|
Brand Name
|
cangier |
|
Model Number
|
3072 4T4B
|
|
Dimension
|
800*800*1900mm
|
|
Capacity
|
728L
|
|
Opening
|
4"-8UN top and bottom
|
|
Material
|
Fiberglass
|
|
Color
|
Nature/Blue/Black/Grey/Green/Customized
|
|
Usage
|
water filter and water softener
|
|
Export Markets
|
Global
|
|
Working Pressure
|
10.5Bar(150PSI)
|
|
Working Temperature
|
1~49℃(34~120℉)
|
|
Lowest Exposed Temperature
|
-27℃(-17℉)
|
|
Max Vacuum
|
127mm Hg(5''Hg)
|
|
MOQ
|
1 Piece
|
Quick Details:
(1) Frp tank liner - Polyethylene (PE) seamless one-piece tank liner
(2) Cover- Continuous strands of fiber-glass with high strength epoxy resin
(3) Bottom base – PP round or FRP reinforced tripod base
(4) Opening – 2.5" & 4" precision injected model with threaded opening for 6 " to 36" diameter tanks
(5) Opening – 6 "Aluminum flange (anti-corrosion coating) opening for 36" to 72" diameter tanks
FRP Tank Application:
All feed water and waste water treatment application, included multi-media filter and softener.
1). Industrial Water Treatment with multi-layer media
2). Water Softening
3). Centralized Filtration System for high rise residential and commercial buildings such as residence , high rise office building, hotels and resorts.
4). Aquaculture, fish farming filtration system
5). Many other water filtration and treatment applications.
6). Widely used in factory, Enterprises, government, hotel, motel, restaurant, residence as storage facility.
7). Use it as equipment in drinking water treatment and fire water supply
PE liner: Rotation moulding or blowing one-piece seamless without leakage.
Opening: we have 2.5'' and 4'' reinforced plastic thread opening or 6'' alloy flange.
Fiberglass winding, support OEM color:
PP round base or FRP Reinforced base:
Standard export carton packing.
7-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
