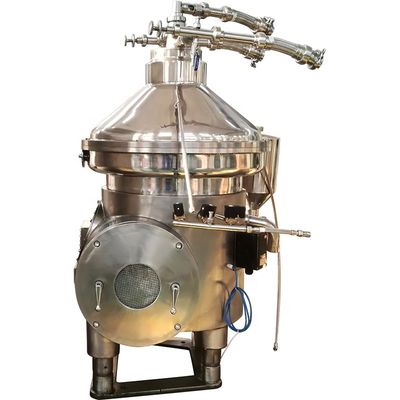

Factory Use Disc Type Solid Separator

Factory Use Disc Type Solid Separator

Factory Use Disc Type Solid Separator
video
Factory Use Disc Type Solid Separator
Product Details:
Place of Origin: Jiangsu, China
Brand Name: cangier
Certification: ASME U
Payment & Shipping Terms:
Price: $47,462.00/pieces 1-4 pieces
Packaging Details: 1.Plastic film package inside, wooden case package outside<br>2.Customer indicate
Supply Ability: 30 Set/Sets per Month
Contact Now
Detailed Product Description
Type: Separating Plant Product Type: Other
Condition: New Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year Core Components: PLC
Voltage: 460V Power: 15000
Weight: 1880 Dimension(L*W*H): 1800*1200*1800mm
Warranty: 1 Year Key Selling Points: High Productivity
Applicable Industries: Manufacturing Plant Showroom Location: None
Name: Disc Separator Application: Vegetable Oil
Capacity: 100-150 T/D Pro-sales Service Provided: Sample Testing Support
After-sales Service Provided: Field Installation, Commissioning And Training Port: Shanghai Seaport

Product Description



Disc separator

Factory Use Disc Type Solid Separator 0

This separator is widely used for degumming, desoaping and water washing in vegetable oil continuous refining process, is one of the best equipment for modern oil refining.

Meanwhile, it is also applicable for separating suspension liquid e.g. two liquids, liquid and solid that have different specific gravities in such industries as light industry, chemical, medicine and food, etc.
Model
DHZ470
Speed of drum
Approx. 6600 rpm
Capacity (m3/h)
3-10
Equivalent settling area
72x107cm²
Motor power (Kw)
15
Weight
~1880Kg



Feature:
1.All parts directly touch to material are made of stainless steel
2.Continuous and automatic operation can minimize labor costs, easy in installation and maintenance
3.High bowl rotation speed with high G-force via VFD adjustable 4.Automatic discharging with PLC control system and LED touch screen operation
5.Full-automatic vibration detector and alarm
6.Running in high speed, operating stability and low noise
7.Stability outlet pressure, large regulating sphere and operating easily

Factory Use Disc Type Solid Separator 1

Working principle :
The materials are transmitted to the heart parts of this machine, the inside of the drum. Under the action of strong centrifugal force, the materials (mixed liquid) pass through the intervals of a group of disk pieces bundles, and then, regarding the neutral hole of the disk pieces as the interface, the liquid with higher density (heavy phase) moves outward the neutral hole along the disk pieces, among which, the heavy residues accumulate in the sediment area, and the heavy phase flows to the large centripetal pump. The liquid with lower density (light phase) moves inward and upward along the disk pieces wall and gathers in the small centripetal pump. The heavy phase and light phase output by the large centripetal pump and small centripetal pump respectively.

Factory Use Disc Type Solid Separator 2

Application:
It is widely used in chemical, pharmaceutical, oil, foodstuff, milk industry, daily industry and defense industry such as:

1. Food stuff industry: For animal protein extraction and separation, as well as in meat processing for refining animal lipid or in concentrating and separating aquatic products of fish oil, in clarifying and degreasing milk, for the clarification of beer and malt, sparkling wine, fruit juice and drinks and so on.
Factory Use Disc Type Solid Separator 3
2. Chemical industry: Mainly used in separating industrial chemicals, paint and coatings. Also it could be used in the
clarification and purification of wastewater from light, textile, chemical fiber industry as well as analogues of greater density solid-phase. Also it is used for concentrating and clarifying of natural rubber, it separates rubber milk into concentrated latex and clear pastern. At the same time it removes the solid impurities in serum.
 Factory Use Disc Type Solid Separator 4
3. Pharmaceutical Industry: Mainly used in separating biopharmaceuticals, pharmaceutical medicine, mycelium, glucose , vitamins, antibiotics, pigments, proteins, spices and so on.
  Factory Use Disc Type Solid Separator 5
4. Oil industry: It can be used vegetable oil, animal fat, fish oil, soap oil, biodiesel and other lipid-foot, swill oil as raw
material, through new centrifugal separation process of trans- esterification and access .
 Factory Use Disc Type Solid Separator 6
5. Other industry: It mainly used to remove the water and mechanical impurities contained in equipment fuel and lubricants in boating mainframe, diesel power station as well as other types of mineral oil, in order to reduce diesel engine or other mechanical wear and extend the useful life of the mechanical. Also applies to separate and clarify similar materials of waste oil in other petrochemical industries, such as black oil, delayed coking oil, washing oil and recycle oil and so on.
 Factory Use Disc Type Solid Separator 7

Features of products: DHZ series automatic discharging separator is special equipment for oil and fat refining ,it has the traits as high rotating speed, operating stability, completely sesled up of the inlet and outlet system, lower noise and fine separating affection.Centripetal pump system designed by our professional designer has the traits as stability outlet pressure, large regulating sphere and operating easily.Also this series separator has professional automatic domination case with safety protection device,advanced automatic vibrating testing instrument can view vibrating number at any time .We can make separating and discharging to the best affection from regulate separating parameter directly at the screen. This machine products are widely used in degum, de-soap and water washing technology in vegetable oil refinery.lt can also be used for refining of animal oil and mineral oil, and liquid-liquid and liquid-solid separations of light industry, chemical industry, medicine and food industry.

   Factory Use Disc Type Solid Separator 8Factory Use Disc Type Solid Separator 9Factory Use Disc Type Solid Separator 10

The Company employs a team of well-trained professional, adopts advance ERP production management model incooperation with state-of-the-art apparatus and processes i.e. CNC Turner, Machine Center, Highly Accuracy Test Instrumentation, Quality and Process Control System to ensure quality, stability and reliability of every product.



Factory Use Disc Type Solid Separator 11

Wuxi Changier Technology Co., Ltd  principally engaged with the in-house research & development as well as manufacturing of various industrial filters, separators and pumps. The Company is proud to be the leader in such industry with approximately 80% domestic market share in Oils & Fats industry, Chemical industry, Pharmaceutical industry, Beverage industry, Petrolchemical industry, and now is one of the well-known producers and suppliers in the world. The Company now has its four production bases with a total capacity of 500,00 square meters in Nanjing City and Yixing City of Jiangsu province, permanent workforces are not less than 1,30 people and the production line is well equipped with more than 20 units of advanced production equipment and test instrumentation.


 FAQ

Q1: Are you a manufacturer or a trader?
A: As a professional manufacturer, we have our own factory, and if a customer has reasonable demand, out machine can be customized.
Q2: How do you ensure the machine quality?
A: As a professional manufacturer of separator and filter devices for more than 15years, with strict management, advanced
processing technologies and professional workers, we are confident for our machines quality. And before any
machine is delivered, will be carefully tested.

Q3: How can I trust you for the first cooperation?
A: Since our company was founded, we have registered in China Industry and Commerce Bureau. We passed the SGS &
ISO certification, and we are a senior member in Alibaba international platform (more than 12years). For the first deal between us, the Alibaba's Trade Assurance service can be used, which will fairly protect your rights and money throughout the transaction process.

Q4: How do I place an order, and how is it completed?
A: Under the condition that the buyer is satisfied with the quotation and pre-sales service:
1. Both of parties sign on a contract, and then the seller prepare the PI.
2. The buyer arranges the down payment.
3. The seller prepares the machines.
4. After the machine is completed, have the test & trial run.
5. Before the delivery, if the buyer requires, have the necessary inspecting.
6. As per the contract/ PI amount, the buyer balances the payment.
7. The machine is going to be shipped.
8. After the machine is received, the seller provide the buyer guidance for the installation and the debugging.
