Place of Origin: | Jiangsu, China |
Brand Name: | cangier |
Price: | $5,000.00 - $15,000.00/sets |
---|---|
Packaging Details: | Film wrapping+Wooden case fumigated for Disc stack solid centrifuge separator |
Supply Ability: | 100 Set/Sets per Month |
Type: | Centrifuge | Condition: | New |
---|---|---|---|
Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
Core Components: | PLC, Pressure Vessel, Pump, Engine, Motor, Gear, Bearing | Voltage: | 220~410V |
Power: | 4~55KW | Weight: | 1000 |
Warranty: | 1 Year | Key Selling Points: | High Productivity |
Applicable Industries: | Farms, Restaurant, Retail, Energy & Mining, Manufacturing Plant, Food & Beverage Factory | Showroom Location: | None |
Function: | Liquid Soild Continuous Centrifge | Material: | Stainless Steel |
After-sales Service Provided: | Field Installation, | After Warranty Service: | Video Technical Support |
Local Service Location: | Viet Nam, Philippines | Product Type: | Disc Oil Separator |
Motor: | Anti-explosion(Opention) | Discharge: | Automatic Discharge |
Control: | Button/PLS | Material Quality: | SS304/321/316L |
Port: | Shanghai |
Solid-Liquid Separation Liquid-Liquid Separation Liquid-Liquid-Solid Separation
In many areas, the separation is an indispensable part. Cangier disc separator can meet your personalized separation process and maximize the processing efficiency.
The disc separator is specially used for the two-phase and three-phase separation. The two-phase separation is to separate the suspended solid from liquid or separate two liquids which have the different specific gravity and are immiscible. The three-phase separation is to separate the two immiscible liquid phases and a phase of solid at the same time.

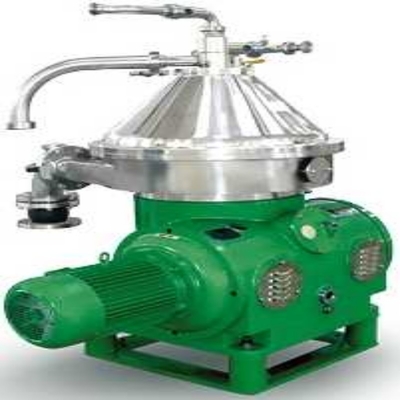

Features of products: DHZ series automatic discharging separator is special equipment for oil and fat refining ,it has the traits as high rotating speed, operating stability, completely sesled up of the inlet and outlet system, lower noise and fine separating affection.Centripetal pump system designed by our professional designer has the traits as stability outlet pressure, large regulating sphere and operating easily.Also this series separator has professional automatic domination case with safety protection device,advanced automatic vibrating testing instrument can view vibrating number at any time .We can make separating and discharging to the best affection from regulate separating parameter directly at the screen. This machine products are widely used in degum, de-soap and water washing technology in vegetable oil refinery.lt can also be used for refining of animal oil and mineral oil, and liquid-liquid and liquid-solid separations of light industry, chemical industry, medicine and food industry.
Technical Data
Model | Treatment Capacity(L/H) | Inlet Pressure(MPa) | Outlet Pressure(MPa) | Motor Power(Kw) | Weight(Kg) | Outline Dimension |
DHZ360 | 1200-2500 | 0.05 | 0.1-0.25 | 7.5 | 1280 | 1500*1150*1500 |
DHZ380 | 1500-5000 | 0.05 | 0.1-0.25 | 11 | 1500 | 1555*1130*1629 |
DHZ470 | 2500-7000 | 0.05 | 0.1-0.25 | 15 | 1880 | 1800*1200*1800 |
DHZ500 | 5000-10000 | 0.05 | 0.1-0.25 | 22 | 1950 | 1800*1250*1800 |
DHZ550 | 6000-15000 | 0.05 | 0.1-0.25 | 22 | 2200 | 1850*1550*2050 |
DHZ700 | 15000-30000 | 0.1 | 0.2 | 30 | 3300 | 2100*1650*2300 |
DRZ360 | 1200-2500 | 0.05 | 0.1-0.25 | 5.5 | 750 | 1250*1050*1500 |
DRZ400A | 2000-6000 | 0.05 | 0.1-0.3 | 7.5 | 1150 | 1300*900*1450 |
DRZ400E | 4000-7500 | 0.05 | 0.1-0.3 | 7.5 | 1300 | 1300*900*1500 |
DRZ55O | 6000-18000 | 0.05 | 0.1-0.3 | 22 | 2200 | 1620*1300*2200 |
The Company employs a team of well-trained professional, adopts advance ERP production management model incooperation with state-of-the-art apparatus and processes i.e. CNC Turner, Machine Center, Highly Accuracy Test Instrumentation, Quality and Process Control System to ensure quality, stability and reliability of every product.
Wuxi Changier Technology Co., Ltd principally engaged with the in-house research & development as well as manufacturing of various industrial filters, separators and pumps. The Company is proud to be the leader in such industry with approximately 80% domestic market share in Oils & Fats industry, Chemical industry, Pharmaceutical industry, Beverage industry, Petrolchemical industry, and now is one of the well-known producers and suppliers in the world. The Company now has its four production bases with a total capacity of 500,00 square meters in Nanjing City and Yixing City of Jiangsu province, permanent workforces are not less than 1,30 people and the production line is well equipped with more than 20 units of advanced production equipment and test instrumentation.
Track Records
With the outstanding track records, the Company* s products were widely applied into different industries. The key factors of our success are to constantly fulfilling customers, requirement and exceed their expectation. We are looking forward to your guidance, opinion and suggestion that would be for a long-term mutual beneficially business relationship.
