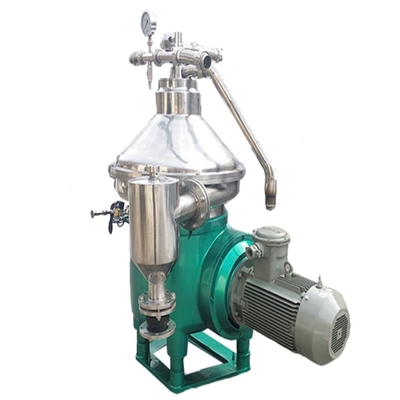

Oil Disc Centrifuge Separator

Introduction:

High-speed disc separator is a kind of ultra-high-speed disc separator. High-speed disc separator has high rotating speed and large separation factor. It can be used in laboratory pilot test and high-score equipment that can be used in small-scale production. The centrifuge covers a small area, simple operation and high degree of automation can be applied to major universities, enterprises and research institutions.

Principle:

The high-speed disc separator is a vertical centrifuge. The drum is mounted on the upper end of the vertical axis and is driven by a motor through a transmission device to rotate at high speed. In the drum, there is a set of disc-shaped parts that are stacked together-discs. There is a small gap between the disc and the disc. The suspension is added to the drum from the feed pipe located in the center of the drum. When the suspension flows through the gap between the discs, the solid particles sink down to the discs under the action of the centrifuge to form sediment. Sediment slides along the surface of the disc and disengages from the disc and accumulates in the part with large diameter in the drum. The separated liquid is discharged from the outlet of the drum. The function of disc is to shorten the settling distance of solid particles and expand the settling area of the drum. The production capacity of the separator is greatly improved due to the installation of disc in the drum. The solid accumulated in the drum is manually removed after the separator is shut down, or discharged from the drum without stopping by the slag removal mechanism.

Scope:

Industry: fruit juice beverage, extraction of tea polyphenols, flavors and fragrances, Chlorella concentration, yeast separation, starch, spices, animal and vegetable oils, milk degreasing, etc.

Pharmaceutical industry: Traditional Chinese medicine extraction, biopharmaceutical, plant extraction, microbial fermentation, extraction of antibiotics and vitamins, etc.

Chemical Industry: paint, ink, makeup, mineral oil, cutting liquid, biodiesel, chemical energy, etc.

Parameters:

1. Drum

Rotating speed of drum: 11500rpm; Equivalent settlement area: 10.5x107cm²; Separation factor: 14600G; Slag discharge time and clearance time: depending on the nature of materials, the slag discharge time is from 0.1 to 0.9 seconds; The interval of slag discharge can be adjusted arbitrarily from 1-240min!

2. Motor

Motor speed: 1440r/min; Motor power: 4.0Kw; Start time: 10min; Downtime (without brake device):≤ 25min.

3. Work indicators

Inlet pressure: 0-0.1mpa; Outlet pressure: 0-0.1mpa; Operating water pressure: 0.2MPa ≤ P ≤ 0.35Mpa; Noise level: ≤ 80dB; Vibration level: 1.5mm/s.

Whole machine weight: 250Kg; Overall dimensions: 9200x790x950mm.
