8inch Side Entry FRP RO Membrane Housing 300psi

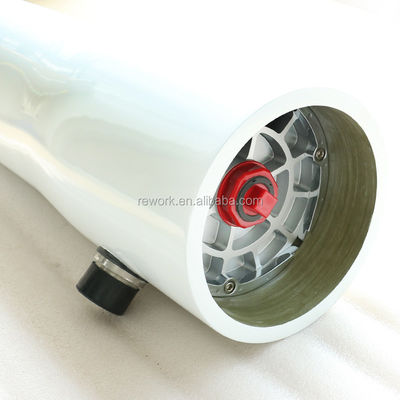

8inch Side Entry FRP RO Membrane Housing 300psi

  • 8inch Side Entry FRP RO Membrane Housing 300psi
  • 8inch Side Entry FRP RO Membrane Housing 300psi
  • 8inch Side Entry FRP RO Membrane Housing 300psi
  • 8inch Side Entry FRP RO Membrane Housing 300psi
  • 8inch Side Entry FRP RO Membrane Housing 300psi
8inch Side Entry FRP RO Membrane Housing 300psi
Product Details:
Place of Origin: Jiangsu, China
Brand Name: changier
Model Number: 8040
Payment & Shipping Terms:
Price: $38.00 - $200.00/pieces
Packaging Details: carton packing
Supply Ability: 1000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Applicable Industries: Hotels, Food & Beverage Shops, Food & Beverage Factory, Energy & Mining Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Other Warranty Of Core Components: 3 Months
Core Components: Pressure Vessel Warranty: 3 Years
Name: Pentair Codeline Membrane Housing Size: 8"x40"
Length: 1-7elements Connection: Side Entry
Working Pressure: 300psi/450psi/600psi/800psi/1000psi/1200psi Material: FRP
RO Membrane: DOW And Other Standard Ro Membrane Application: Brackish Water Treatment
Port: Any Port Of China
High Light:

8inch Side Entry RO Membrane Housing

,

300psi RO Membrane Housing

8inch Side Entry FRP RO Membrane Housing 300psi 0

8 INCH SIDE PORT SERIES OF MEMBRANE HOUSINGS--- 8040S30,8040S45,8040S60,8040S80,8040S100

8” diameter with side entry design. This is used for commercial, municipal and industrial RO applications. Vessel models are available in operating pressure of 300 PSI, 450 PSI, 600 PSI,800 PSI and 1000 PSI with multiport connectivity. These are made up of epoxy/ glass composite to meet the demands of long term and continuous use in RO processes. Rework FRP vessels can accommodate any standard 8” membrane element.

FEATURES & BENEFITS

  • Mirror finish inner surface for easy and quick loading and unloading of membranes
  •
  • Multiporting option available with 1.5”, 2.0”, 2.5” diameters for connecting vessels to each other
  •
  • Quick lock head retention system for quick access to membranes
  •
  • Exteriors coated with high-gloss polyurethane paint for UV resistance
  •
  • Compatible for using in brackish, high brackish and sea water applications for respective pressure ratings



8" FRP Pressure Vessel / RO Membrane Vessel /RO Membrane Housing for Reverse Osmosis Water Treatment equipment



The integrated locking ring thrust ring can reduce pressure drop at high-speed flow rate. Its cone design can guarantee high compression resistance property. The maximum may reach to 205kgf/cm2. The surface is polyurethane coating. It can protect that the membrane housing cannot be suffered from environmental damage and assure its beautiful and taste appearance. The standard color is white. Other color may also be provided.



Technical Specification:

1) Diameter: 8"

2) length: 1 , 2 ,3 ,4 ,5,6,7 membrane elements

3)working pressure: 300psi/450psi/600psi/800psi/1000psi/1200psi

4)connection: Side Port /End Port

5)Standard color: White/Blue/Natural

6)Leakage test: 1.5times of designed working pressure

7)Operating temperature range: -7celsius degree to 49 celsius degree (20°F to 120°F)

8)Burst pressure : 6times of designed working pressure

9)Operating pH range:3-11

10)Cleaning pH range:2-12(less than 30min)

Suitabe for DOW,Filmtec,Hydranautics ,Totray ,CSM ,Koch ,GE ,Vontron and other standard membrane .



SPARE PARTS OVERVIEW

8inch Side Entry FRP RO Membrane Housing 300psi 1 8inch Side Entry FRP RO Membrane Housing 300psi 2 8inch Side Entry FRP RO Membrane Housing 300psi 3 8inch Side Entry FRP RO Membrane Housing 300psi 4 8inch Side Entry FRP RO Membrane Housing 300psi 5 8inch Side Entry FRP RO Membrane Housing 300psi 6 8inch Side Entry FRP RO Membrane Housing 300psi 7 8inch Side Entry FRP RO Membrane Housing 300psi 8 8inch Side Entry FRP RO Membrane Housing 300psi 9
