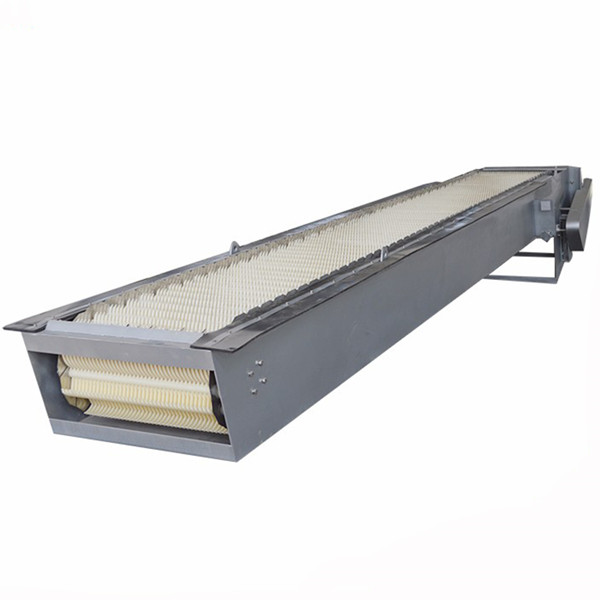

Suspended Solid Wastewater Treatment Bar Screen Bar Racks Static Sieve Bar Screen

Suspended Solid Wastewater Treatment Bar Screen Bar Racks Static Sieve Bar Screen

  • Suspended Solid Wastewater Treatment Bar Screen Bar Racks Static Sieve Bar Screen
  • Suspended Solid Wastewater Treatment Bar Screen Bar Racks Static Sieve Bar Screen
Suspended Solid Wastewater Treatment Bar Screen Bar Racks Static Sieve Bar Screen
Product Details:
Place of Origin: Jiangsu,China
Brand Name: Changier
Certification: CE/ISO9001
Model Number: GS-600
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Cases
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Material: Customized Application: Mechanical Fine Bar Screen
Width Of Grid: 1000-5000mm Product Name: Static Sieve Bar Screen
Type: Coarse Bar Screen Motor: Domestic Or Imported Brand
High Light:

mechanical fine screen

,

sewage bar screen

Suspended Solid Wastewater Treatment Bar Screen Bar Racks Static Sieve Bar Screen



Product Description



Our bar screen is perfectly suited to both municipal and industrial waste water, and process water screening.



The cleaning elements, attached to the chain system, can easily be adjusted to different requirements.



These elements are rake tooth and brushes. Each chain is driven by a sprocket on a common shaft and a flange mounted gear motor.



If the screen operation is blocked, a mechanical over load protection interrupts the operation.



Suspended Solid Wastewater Treatment Bar Screen Bar Racks Static Sieve Bar Screen 0



  GS-300 GS-400 GS-500 GS-600 GS-700 GS-800 GS-900 GS-1100 GS-1200 GS-1250 GS-1500
Install angle( a) 60°~80°
Power(kw) 0.37~0.75 0.55~1.1 0.75~1.5 1.1~2.2 1.5~3
ScreenSpeed( m/min) About 2
Width W0(mm) 300 400 500 600 700 800 900 1100 1200 1250 1500
Height H0 (mm) H+H1+1350
Total Width W1(mm) 650 750 850 950 1050 1150 1250 1450 1550 1600 1850
Ditch Width U(mm) 400 500 600 700 800 900 1000 1200 1300 1350 1600
Ditch Depth H(mm) decided by user
Diversion Trench Length L(mm) 1500+Hxctga
Medium Maxi Temperature(°C) <80°
Foot Margin To Discharging Top Mouth Height H2(mm) 400~1000



Working Principle of Bar screen


When the rake tooth chain operate to upside of equipment, due to the guiding of Geneva wheel and curve, which produce the relative self-cleaning motion between each group rake tooth, most of the solid drop down by gravity. Another parts clean up the sundries sticking in the rake tooth by sweeper ‘s Reverse movement.


Rake tooth chain similar to grilling by water flow direction, the rake tooth clearance which assembled in rake tooth chain shaft can be chose according to usage condition; Which can guarantee water flow pass by smoothly after the rake tooth separate the suspended solid in the fluid. the whole process can be continuous and intermittent.



Screen Construction: (material according to the actual model)



1. The screening elements is suitable stainless steel which will not shred trash or cause jamming, because of the self relieving nature of the material

2. The roller and bushings is 304 stainless steel for reduced wear and long life.

3. The frame, which is stationary, is 304 stainless steel.
