|Place of Origin:||Wuxi,Jiangsu,China|
|Minimum Order Quantity:||Negotiation|
|Packaging Details:||Wooden Cases|
|Delivery Time:||45 Days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||100 Unit Per Year|
|Warranty:||1 Year||Operating Temperature:||5-45 ℃|
|Size:||Can Be Customized||Function:||Wastewater(sewage) Treatment Plant|
membrane biological reactor,
mbr sewage treatment

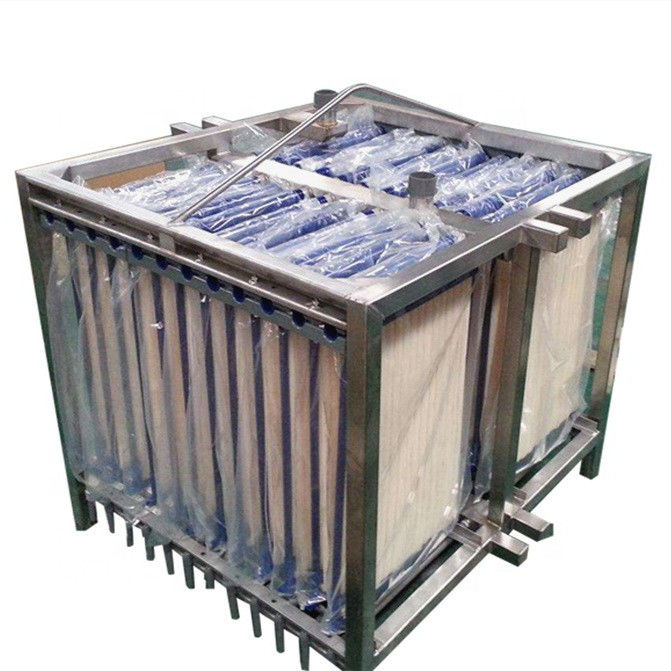

Membrane Bioreactor MBR Water Treatment Filter Unit Anti Fouling Long Service Life
Membrane Bioreactor (MBR) is a kind of advanced technology,membrane separation technology with biological technology.
The membrane separation technology replaces the traditional active sludge method and the normal filter unit, its strong separation ability can make the SS turbidity near to be zero.
Hydraulic retention time (HRT) sludge age (SRT) is completely separated, the outlet water is good and stable in quality, it can be reused without the third level treatment.
Due to the high security and economic and effective water, it greatly expands the scope of application of waste water recycling.
1. Advanced Material: The main material of the membrane is PVDF, which has Excellent chemical stability, permeate flux, permeate quality,
and fouling resistance.
2. Better outlet water quality:Pore size of Rosun flat sheet membrane is around 0.1 micron, and with advanced membrane technology increased the effective orifice area of the membrane surface then lead to excellent permeate flux and permeate quality. The output water can be reused directly.
3. Higher activated sludge adaption:Compared with the hollow fiber curtain membrane whose activated sludge adaption is only 4000-
6000mg/l,Rosun flat sheet membrane can adapt 8000-15000mg/L activated sludge, which made our flat sheet membrane specially suitable for industrial waste water, hospital waste water, Landfill leachate,lectroplating waste water, and refractory organic wastewater.
4. Longer service life:Compared with hollow fiber curtain membrane,Rosun flat sheet membrane will not have break, twine and clay lump
problem when use.which made our flat sheet have a longer service life 3-6years compared with 1-3years service life of hollow fiber curtain
5. Less land space:The MBR reactor tank can replace the function of secondary sedimentation tank with aerobic tank,it can save 30% of land space. With high concentration of microorganisms, it have high volumetric loading, and it has simple technical process and compact
structure, suitable both for ground and half underground design.
6. Easy to Operate and maintenance:The flat sheet membrane can be just replaced each single damaged piece without change the holder when damage and replacement, replace just need 15 minutes,it realized the complete separation of hydraulic retention time (HRT) and sludge
retention time (SRT), making operation and control more flexible and stable.
7. Economy:The cleaning cycle of flat sheet membrane is more than 3months which is longer than the 1 month cleaning cycle of hollow fiber curtain membrane’s. And it is no need to back-wash, therefore, it will save manual, chemical and electricity cost. When close to the
membrane service life, the Hollow fiber curtain membrane cannot use any more, but for flat sheet membrane just need to replace 1/3~1/2, the outlet water quality can still reach the requirement.
As a waste water treatment system features simple operation, high automation and modular design, it also has below advantages:
1. Save 50% occupying area compared with traditional system.
2. Relative high MLSS value(<15g/L)and long residue time for sludge(<60days).
3. Stable producing water quality for different inlet water.
4. Less sludge residue reduces cost for sludge treatment.
5. Low energy consumption, simple cleaning and low operation cost.
6. Compact design, which is easy to transport.
7. Integrated device, no need construction, which is easy to be installed.
8. Full Automatic machine, which is easy to operate and maintain.
9. Can be fixed on underground, which can save room and earth.
10. Don't need additional construction, the total cost is small.
