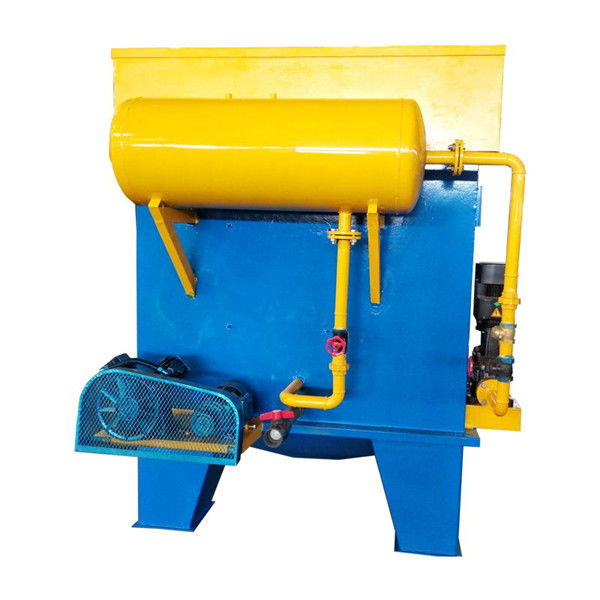

Container Type Dissolved Air Flotation In Industrial Wastewater Treatment

Container Type Dissolved Air Flotation In Industrial Wastewater Treatment

  • Container Type Dissolved Air Flotation In Industrial Wastewater Treatment
Container Type Dissolved Air Flotation In Industrial Wastewater Treatment
Product Details:
Place of Origin: Jiangsu,China
Brand Name: Changier
Certification: CE/ISO9001
Model Number: DAF-500
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 6 Weeks
Payment Terms: T/T, L/C
Supply Ability: 1000 Units Per Year
Contact Now
Detailed Product Description
Function: Separate Solid-liquid Product Name: DAF Dissolved Air Floatation
Flow Rate: 1-300CBM/hr Service Life: Over 10 Years Depend On Your Inquiry
High Light:

slurry dewatering equipment

,

sewage plant equipment

Container Type Dissolved Air Flotation In Industrial Wastewater Treatment



DAF Parameter



DAF is one of the most effective methods whose specific gravity is close to 1.0 from water.Dissolved Air Flotation is liquid/solid or liquid/liquid separation process to remove tiny suspended solids that density close to the water, colloid , oil and grease etc. Dissolved air flotation is an innovation combined with traditional dissolved air flotation concept and modern technology.





Model Capacity Power(kw) Dimension(m) Pipe connection(DN)
(m3/h) Recycle pump Air compressor Skimming system L/L1 W/W1 H/H1 (a) Water inlet (b) water outlet (c) sludge outlet
DAF-002 ~2 0.75 0.55 0.2 3.2/2.5 2.4/1.16 2.2/1.7 40 40 80
DAF-003 ~3 0.75 0.55 0.2 3.5/2.8 2.4/1.16 2.2/1.7 80 80 100
DAF-005 ~5 1.1 0.55 0.2 3.8/3.0 2.4/1.16 2.2/1.7 80 80 100
DAF-010 ~10 1.5 0.55 0.2 4.5/3.8 2.7/1.36 2.4/1.9 100 100 100
DAF-015 ~15 2.2 0.75 0.2 5.5/4.5 2.9/1.6 2.4/1.9 100 100 100
DAF-020 ~20 3 0.75 0.2 5.7/4.8 3.2/2.2 2.4/1.9 150 150 150
DAF-030 ~30 3 0.75 0.2 6.5/5.5 3.2/2.2 2.5/2.0 150 150 150
DAF-040 ~40 5.5 0.75 0.2 7.7/6.7 3.6/2.6 2.5/2.1 200 200 150
DAF-050 ~50 5.5 0.75 0.2 8.1/7.1 3.6/2.6 2.5/2.1 200 200 150
DAF-060 ~60 7.5 1.5 0.2 9.5/8.4 3.8/2.8 2.5/2.1 250 250 150
DAF-070 ~70 7.5 1.5 0.2 10.0/9.0 3.8/2.8 2.5/2.1 250 250 150
DAF-080 ~80 11 1.5 0.2 10.5/9.5 4.0/3.0 2.5/2.1 250 250 150
DAF-100 ~100 15 2.2 0.2 11.7/10.6 4.2/3.2 2.5/2.1 300 300 150
DAF-120 ~120 15 2.2 0.2 12.5/11.4 4.4/3.4 2.5/2.1 300 300 150




Container Type Dissolved Air Flotation In Industrial Wastewater Treatment 0





The air will be send by air compressor into air tank, then take in air dissolved tank by jet flow device, the air will be force to dissolve into water under 0.35Mpa pressure and forming dissolved air water, then send to air flotation tank.



Under the circumstance of sudden release, the air dissolved in water will be dissolve out and form vast microbubble group, which will be fully contact the flocculating suspended matter in sewage, the suspended matter was sent by pump and flocculation after adding medicine, the ascending microbubble group will adsorb in the flocculated suspended matter, made its density reduce and floated to water surface, thus reach the purpose of removing SS and CODcr etc.





Product Display



Container Type Dissolved Air Flotation In Industrial Wastewater Treatment 1

Container Type Dissolved Air Flotation In Industrial Wastewater Treatment 2



FAQ

Q: How to buy your idea products?

A: You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).


Q: How to pay?

A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.


Q: What is the delivery time?

A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.


Q: How to pack the products?

A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.


Q: How to keep your equipments from corrosion?

A: We use the world-famous paint, like SigmaCoatings,PainBow,etc. What's more, we paint strictly according to the standard process.


Q: How do you manufacture your equipment?
