Protect Water Resources For Our Planet

|
| Place of Origin: | Jiangsu,China |
| Brand Name: | Changier |
| Certification: | ISO9001/CE |
| Model Number: | DAF-500 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box/Carton Box |
| Delivery Time: | 45 Weeks |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 Units Per Year |
| Application: | Water Clarification | Operation: | Continuely Running 24 Hours |
|---|---|---|---|
| Power: | Accordingly To Inquiry | Material Of Construction: | SS316L/SS304 |
| Warrenty: | Over 12 Months | Function: | Separate Liquid And Solid |
| High Light: | industrial wastewater treatment equipment,slurry dewatering equipment |
||

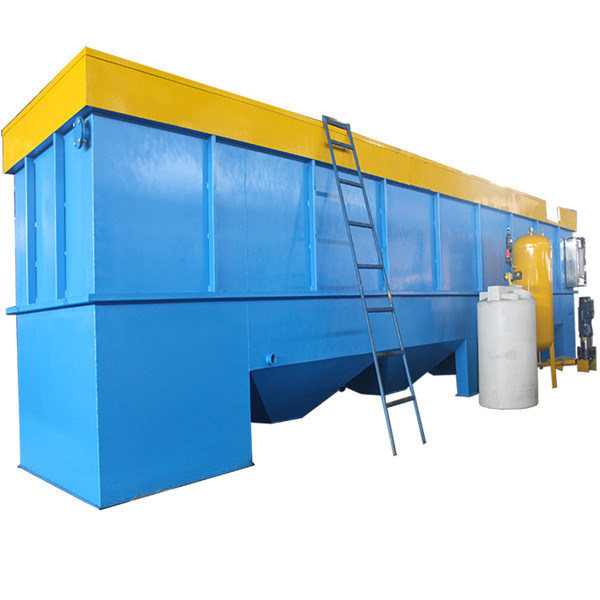

Sewage Treatment Diffused Air Flotation Units Dissolved Air Flotation Tank
Waste water treatment Dissolved Air Flotation(DAF) is an efficient flotation method for water clarification. The term refers to the method of producing flotation by dissolving air in the water under pressure and then releasing the pressure. When the pressure is released the solution becomes supersaturated with air as millions of small bubbles form. These bubbles attach to any particles in the water causing their density to
become less than that of water. The particles then rapidly float to the surface for collection and removal, leaving the clarified water behind.
| Model | Capacity | Power(kw) | Dimension(m) | Pipe connection(DN) | ||||||
| (m3/h) | Recycle pump | Air compressor | Skimming system | L/L1 | W/W1 | H/H1 | (a) Water inlet | (b) water outlet | (c) sludge outlet | |
| DAF-002 | ~2 | 0.75 | 0.55 | 0.2 | 3.2/2.5 | 2.4/1.16 | 2.2/1.7 | 40 | 40 | 80 |
| DAF-003 | ~3 | 0.75 | 0.55 | 0.2 | 3.5/2.8 | 2.4/1.16 | 2.2/1.7 | 80 | 80 | 100 |
| DAF-005 | ~5 | 1.1 | 0.55 | 0.2 | 3.8/3.0 | 2.4/1.16 | 2.2/1.7 | 80 | 80 | 100 |
| DAF-010 | ~10 | 1.5 | 0.55 | 0.2 | 4.5/3.8 | 2.7/1.36 | 2.4/1.9 | 100 | 100 | 100 |
| DAF-015 | ~15 | 2.2 | 0.75 | 0.2 | 5.5/4.5 | 2.9/1.6 | 2.4/1.9 | 100 | 100 | 100 |
| DAF-020 | ~20 | 3 | 0.75 | 0.2 | 5.7/4.8 | 3.2/2.2 | 2.4/1.9 | 150 | 150 | 150 |
| DAF-030 | ~30 | 3 | 0.75 | 0.2 | 6.5/5.5 | 3.2/2.2 | 2.5/2.0 | 150 | 150 | 150 |
| DAF-040 | ~40 | 5.5 | 0.75 | 0.2 | 7.7/6.7 | 3.6/2.6 | 2.5/2.1 | 200 | 200 | 150 |
| DAF-050 | ~50 | 5.5 | 0.75 | 0.2 | 8.1/7.1 | 3.6/2.6 | 2.5/2.1 | 200 | 200 | 150 |
| DAF-060 | ~60 | 7.5 | 1.5 | 0.2 | 9.5/8.4 | 3.8/2.8 | 2.5/2.1 | 250 | 250 | 150 |
| DAF-070 | ~70 | 7.5 | 1.5 | 0.2 | 10.0/9.0 | 3.8/2.8 | 2.5/2.1 | 250 | 250 | 150 |
| DAF-080 | ~80 | 11 | 1.5 | 0.2 | 10.5/9.5 | 4.0/3.0 | 2.5/2.1 | 250 | 250 | 150 |
| DAF-100 | ~100 | 15 | 2.2 | 0.2 | 11.7/10.6 | 4.2/3.2 | 2.5/2.1 | 300 | 300 | 150 |
| DAF-120 | ~120 | 15 | 2.2 | 0.2 | 12.5/11.4 | 4.4/3.4 | 2.5/2.1 | 300 | 300 | 150 |
l Separate or recycle waste oil or grease in : oil exploration and refining, biodiesel, machining , food production and catering and so on.
lBiochemical effluent liquid separation: the anaerobic effluent solid-liquid separation, aerobic (activated sludge process, contact oxidation, filter) biochemical water solid-liquid separation, the secondary settling tank Effluent treatment and so on.
lPurification: river, landscape, recycle water and so on.
lHigh concentration organic wastewater treatment: paper, printing and dyeing, textile, leather, pharmaceutical, fermentation wastewater and so on.
l Farm and slaughter house wastewater treatment: cattle, pigs, chickens farm, slaughter house wastewater.
l Manufacturing waste: electroplating, painting, etc.
