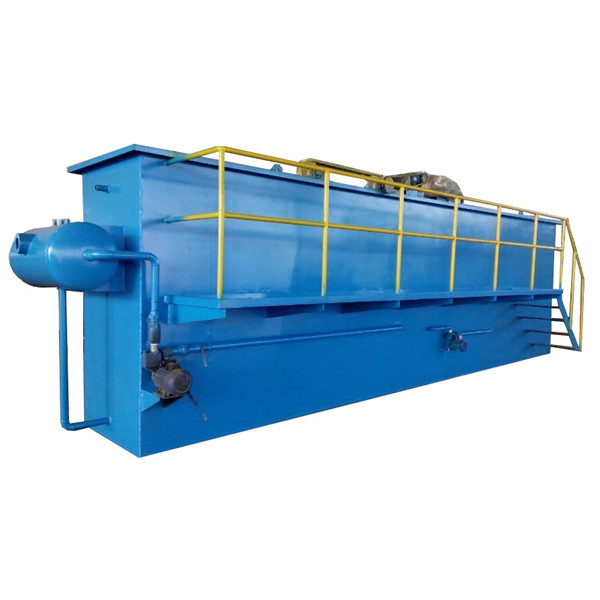

Water Separation Dissolved Air Flotation Equipment For Pharmacy Industry

Water Separation Dissolved Air Flotation Equipment For Pharmacy Industry

  • Water Separation Dissolved Air Flotation Equipment For Pharmacy Industry
Water Separation Dissolved Air Flotation Equipment For Pharmacy Industry
Product Details:
Place of Origin: China
Brand Name: Changier
Certification: CE/ISO9001
Model Number: DAF-020
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 4~6 Weeks
Payment Terms: T/T, L/C
Supply Ability: 1000 Sets Per Year
Contact Now
Detailed Product Description
Origin: Jiangsu,China Material Of Construction: Carbon Steel Or Stainless Steel SS304/SS316L.
Product Name: Dissolved Air Flotation System Warranty: 2 Years
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining Capacity: 1~200m3/h
High Light:

daf machine

,

dissolved air flotation unit

Water Separation Dissolved Air Flotation Equipment For Pharmacy Industry



 Description



Dissolved air flotation machine (DAF) is manufactured by our factory and mainly used for solid-liquid separation and liquid-liquid separation. A large numbers of fine and uniform bubble (5 ~ 80μm), bubbles, water, floc (oil) three-phase mixture, as a carrier, bubbles mixed with floc particles suspended in the water. Connect, adhesion, form floc with bubbles and float to the liquid surface, scraping scum to achieve separation of impurities, water purification.



Dissolved air flotation is one of the most effective methods whose specific gravity is close to 1.0 from water.Dissolved Air Flotation is liquid/solid or liquid/liquid separation process to remove tiny suspended solids that density close to the water, colloid , oil and grease etc. Dissolved air flotation is an innovation combined with traditional dissolved air flotation concept and modern technology.



Work Principle

   DAF dissolved air flotation consists of flotation tank, dissolved air system, reflux pipe, dissolved air released system, skimmer (Based on customer needs, there are combined type, traveling type and chain-plate type to choose.), electric cabinet and so on.



  Air flotation separation technology of Benenv DAF dissolved air flotation dissolves air into water at certain working pressure. In the process, pressurized water is saturated with dissolved air and is discharged into a flotation vessel. The microscopic air bubbles produced by released air attach to suspended solids and float them to the surface, forming a sludge blanket. A scoop removes the thickened sludge. Finally, it complete purifies the water.



  Air flotation technology of DAF dissolved air flotation plays an important role in solid-liquid separation (Simultaneously reduce COD, BOD, chroma, etc). Firstly, mix flocculating agent into raw water and stir thoroughly. After the effective retention time (lab determines the time, dosage and flocculation effect), the raw water enters into the contact zone where microscopic air bubbles adhere to the floc and then flows into the separation zone. Under the buoyancy effects, the tiny bubbles float the flocs to the surface, forming a sludge blanket. A skimming device removes the sludge into the sludge hopper. Then the lower clarified water flows into the clean-water reservoir through the collecting pipe. Some of water are recycled to the flotation tank for the air dissolving system, while others will be discharged.



Product name Dissolved air flotation
Model DAF-020
Application Wastewater treatment
Maximum capacity 20m3/h
Net weight 4t
Running weight 27t
Power 6.69Kw
Motor Bauer, Nissei, Sew
Material Stainless steel or carbon steel
Service life > 10 Years
Warranty 2 Years
Operation 24 hours automatic running
After-sales service provided Engineers availble to service machinery overseas
Payment Paypal, T/T, Western Union, Escrow, MoneyGram





DAF Parameter



Model Capacity Power(kw) Dimension(m) Pipe connection(DN)
(m3/h) Recycle pump Air compressor Skimming system L/L1 W/W1 H/H1 (a) Water inlet (b) water outlet (c) sludge outlet
DAF-002 ~2 0.75 0.55 0.2 3.2/2.5 2.4/1.16 2.2/1.7 40 40 80
DAF-003 ~3 0.75 0.55 0.2 3.5/2.8 2.4/1.16 2.2/1.7 80 80 100
DAF-005 ~5 1.1 0.55 0.2 3.8/3.0 2.4/1.16 2.2/1.7 80 80 100
DAF-010 ~10 1.5 0.55 0.2 4.5/3.8 2.7/1.36 2.4/1.9 100 100 100
DAF-015 ~15 2.2 0.75 0.2 5.5/4.5 2.9/1.6 2.4/1.9 100 100 100
DAF-020 ~20 3 0.75 0.2 5.7/4.8 3.2/2.2 2.4/1.9 150 150 150
DAF-030 ~30 3 0.75 0.2 6.5/5.5 3.2/2.2 2.5/2.0 150 150 150
DAF-040 ~40 5.5 0.75 0.2 7.7/6.7 3.6/2.6 2.5/2.1 200 200 150
DAF-050 ~50 5.5 0.75 0.2 8.1/7.1 3.6/2.6 2.5/2.1 200 200 150
DAF-060 ~60 7.5 1.5 0.2 9.5/8.4 3.8/2.8 2.5/2.1 250 250 150
DAF-070 ~70 7.5 1.5 0.2 10.0/9.0 3.8/2.8 2.5/2.1 250 250 150
DAF-080 ~80 11 1.5 0.2 10.5/9.5 4.0/3.0 2.5/2.1 250 250 150
DAF-100 ~100 15 2.2 0.2 11.7/10.6 4.2/3.2 2.5/2.1 300 300 150
DAF-120 ~120 15 2.2 0.2 12.5/11.4 4.4/3.4 2.5/2.1 300 300 150




Water Separation Dissolved Air Flotation Equipment For Pharmacy Industry 0





Product Display

Water Separation Dissolved Air Flotation Equipment For Pharmacy Industry 1

Water Separation Dissolved Air Flotation Equipment For Pharmacy Industry 2

Project Cases

Water Separation Dissolved Air Flotation Equipment For Pharmacy Industry 3

Features

1. Small footprint, Low energy consumption;

2. Easy operation;

3. Simple management;

4. Efficient dissolved air;

5. Stable treatment effect ;

6. Full-automatic operation;



FAQ



1. How to buy your idea products?

[A] You can provide us your water sources, water quality, flow rate and ground area.



2. What is your payment terms?

[A] TT and L/C are acceptable and TT will be more appreciated.



3. What is the delivery time?

[A] It depends on order quantities.



4. How to pack the products?

[A] We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.



5. How to keep your equipments from corrosion?

[A] We use the world-famous paint, like SigmaCoatings,PainBow,etc. What's more, we paint strictly according to the standard process.



6. How do you manufacture your equipment ?

[A] Our machining technology includes laser/plasma cutting, automatic welding,CNC cutting and bending.



7. How to install after the equipments arriving destination?

[A] We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you.
