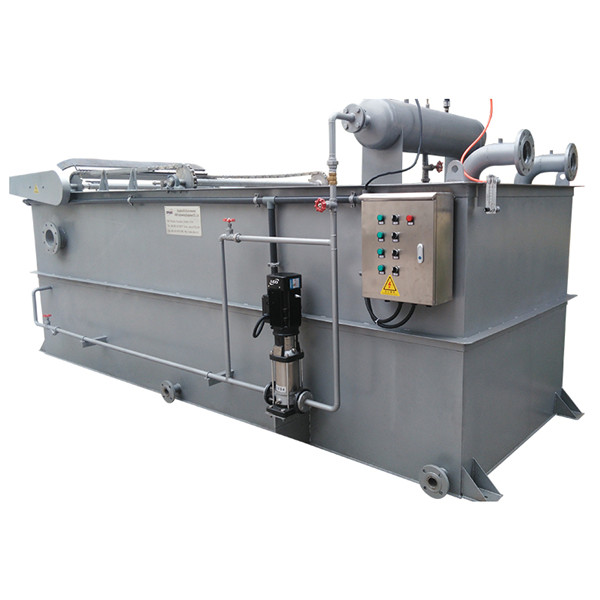

5 Cbm/H Dissolved Air Flotation Equipment Micro Bubbles Generating Technology

5 Cbm/H Dissolved Air Flotation Equipment Micro Bubbles Generating Technology

5 Cbm/H Dissolved Air Flotation Equipment Micro Bubbles Generating Technology
video
5 Cbm/H Dissolved Air Flotation Equipment Micro Bubbles Generating Technology
Product Details:
Place of Origin: China
Brand Name: Changier
Certification: CE/ISO9001
Model Number: DAF-005
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 6 Weeks
Payment Terms: T/T, L/C
Supply Ability: 500 Sets Per Year
Contact Now
Detailed Product Description
Material Of Construction: Accordingly Product Name: Dissolved Air Flotation System
After-sales Service Provided: Field Maintenance And Repair Service Flow Rate: 5 Cbm/h
Size: 3800*2400*2200mm Type: Dissolved
High Light:

daf equipment

,

dissolved air flotation unit

5 Cbm/H Dissolved Air Flotation Equipment Micro Bubbles Generating Technology



 Description



Dissolved air flotation machine (DAF) is manufactured by our factory and mainly used for solid-liquid separation and liquid-liquid separation.



A large numbers of fine and uniform bubble (5 ~ 80μm), bubbles, water, floc (oil) three-phase mixture, as a carrier, bubbles mixed with floc particles suspended in the water. Connect, adhesion, form floc with bubbles and float to the liquid surface, scraping scum to achieve separation of impurities, water purification.



Dissolved air flotation is one of the most effective methods whose specific gravity is close to 1.0 from water.

Dissolved Air Flotation is liquid/solid or liquid/liquid separation process to remove tiny suspended solids that density close to the water, colloid , oil and grease etc.



Dissolved air flotation is an innovation combined with traditional dissolved air flotation concept and modern technology.



Work Principle

   The air will be send by air compressor into air tank, then take in air dissolved tank by jet flow device, the air will be force to dissolve into water under 0.35Mpa pressure and forming dissolved air water, then send to air flotation tank. Under the circumstance of sudden release, the air dissolved in water will be dissolve out and form vast microbubble group, which will be fully contact the flocculating suspended matter in sewage, the suspended matter was sent by pump and flocculation after adding medicine, the ascending microbubble group will adsorb in the flocculated suspended matter, made its density reduce and floated to water surface, thus reach the purpose of removing SS and CODcr etc.





DAF Parameter



Model Capacity Power(kw) Dimension(m) Pipe connection(DN)
(m3/h) Recycle pump Air compressor Skimming system L/L1 W/W1 H/H1 (a) Water inlet (b) water outlet (c) sludge outlet
DAF-002 ~2 0.75 0.55 0.2 3.2/2.5 2.4/1.16 2.2/1.7 40 40 80
DAF-003 ~3 0.75 0.55 0.2 3.5/2.8 2.4/1.16 2.2/1.7 80 80 100
DAF-005 ~5 1.1 0.55 0.2 3.8/3.0 2.4/1.16 2.2/1.7 80 80 100
DAF-010 ~10 1.5 0.55 0.2 4.5/3.8 2.7/1.36 2.4/1.9 100 100 100
DAF-015 ~15 2.2 0.75 0.2 5.5/4.5 2.9/1.6 2.4/1.9 100 100 100
DAF-020 ~20 3 0.75 0.2 5.7/4.8 3.2/2.2 2.4/1.9 150 150 150
DAF-030 ~30 3 0.75 0.2 6.5/5.5 3.2/2.2 2.5/2.0 150 150 150
DAF-040 ~40 5.5 0.75 0.2 7.7/6.7 3.6/2.6 2.5/2.1 200 200 150
DAF-050 ~50 5.5 0.75 0.2 8.1/7.1 3.6/2.6 2.5/2.1 200 200 150
DAF-060 ~60 7.5 1.5 0.2 9.5/8.4 3.8/2.8 2.5/2.1 250 250 150
DAF-070 ~70 7.5 1.5 0.2 10.0/9.0 3.8/2.8 2.5/2.1 250 250 150
DAF-080 ~80 11 1.5 0.2 10.5/9.5 4.0/3.0 2.5/2.1 250 250 150
DAF-100 ~100 15 2.2 0.2 11.7/10.6 4.2/3.2 2.5/2.1 300 300 150
DAF-120 ~120 15 2.2 0.2 12.5/11.4 4.4/3.4 2.5/2.1 300 300 150






                        5 Cbm/H Dissolved Air Flotation Equipment Micro Bubbles Generating Technology 0





Product Display



                                  5 Cbm/H Dissolved Air Flotation Equipment Micro Bubbles Generating Technology 1

Project Cases





                       5 Cbm/H Dissolved Air Flotation Equipment Micro Bubbles Generating Technology 2

Features

1. Small footprint, Low energy consumption;

2. Easy operation;

3. Simple management;

4. Efficient dissolved air;

5. Stable treatment effect ;

6. Full-automatic operation;



FAQ



1. How to buy your idea products?

[A] You can provide us your water sources, water quality, flow rate and ground area.



2. What is your payment terms?

[A] TT and L/C are acceptable and TT will be more appreciated.



3. What is the delivery time?

[A] It depends on order quantities.



4. How to pack the products?

[A] We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.



5. How to keep your equipments from corrosion?

[A] We use the world-famous paint, like SigmaCoatings,PainBow,etc. What's more, we paint strictly according to the standard process.



6. How do you manufacture your equipment ?

[A] Our machining technology includes laser/plasma cutting, automatic welding,CNC cutting and bending.



7. How to install after the equipments arriving destination?

[A] We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you.
