High Efficient DAF Machine Dissolved Air Flotation Wastewater Treatment

High Efficient DAF Machine Dissolved Air Flotation Wastewater Treatment

  • High Efficient DAF Machine Dissolved Air Flotation Wastewater Treatment
  • High Efficient DAF Machine Dissolved Air Flotation Wastewater Treatment
  • High Efficient DAF Machine Dissolved Air Flotation Wastewater Treatment
High Efficient DAF Machine Dissolved Air Flotation Wastewater Treatment
Product Details:
Place of Origin: China
Brand Name: Changier
Certification: CE/ISO9001
Model Number: DAF-002
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 30 days after deposit arrives
Payment Terms: T/T, L/C
Supply Ability: 1000 Sets Per Year
Contact Now
Detailed Product Description
Capacity: 2-100 M 3 / H Product Name: DAF System
Usage: Wastewater Pre-treatment After-sale Service Provide: Engineers Available To Service Machinery Overseas
Size: Accordingly Power: Accordingly
High Light:

daf machine

,

dissolved air flotation unit

High Efficient DAF Machine Dissolved Air Flotation Wastewater Treatment



 Description



Dissolved air flotation machine (DAF) is manufactured by our factory and mainly used for solid-liquid separation and liquid-liquid separation.

Work Principle:

The air will be send by air compressor into air tank, then take in air dissolved tank by jet flow device, the air will be force to dissolve into water under 0.35Mpa pressure and forming dissolved air water, then send to air flotation tank. Under the circumstance of sudden release, the air dissolved in water will be dissolve out and form vast microbubble group, which will be fully contact the flocculating suspended matter in sewage, the suspended matter was sent by pump and flocculation after adding medicine, the ascending microbubble group will adsorb in the flocculated suspended matter, made its density reduce and floated to water surface, thus reach the purpose of removing SS and CODcr etc.





DAF Parameter





Model Capacity Power(kw) Dimension(m) Pipe connection(DN)
(m3/h) Recycle pump Air compressor Skimming system L/L1 W/W1 H/H1 (a) Water inlet (b) water outlet (c) sludge outlet
DAF-002 ~2 0.75 0.55 0.2 3.2/2.5 2.4/1.16 2.2/1.7 40 40 80
DAF-003 ~3 0.75 0.55 0.2 3.5/2.8 2.4/1.16 2.2/1.7 80 80 100
DAF-005 ~5 1.1 0.55 0.2 3.8/3.0 2.4/1.16 2.2/1.7 80 80 100
DAF-010 ~10 1.5 0.55 0.2 4.5/3.8 2.7/1.36 2.4/1.9 100 100 100
DAF-015 ~15 2.2 0.75 0.2 5.5/4.5 2.9/1.6 2.4/1.9 100 100 100
DAF-020 ~20 3 0.75 0.2 5.7/4.8 3.2/2.2 2.4/1.9 150 150 150
DAF-030 ~30 3 0.75 0.2 6.5/5.5 3.2/2.2 2.5/2.0 150 150 150
DAF-040 ~40 5.5 0.75 0.2 7.7/6.7 3.6/2.6 2.5/2.1 200 200 150
DAF-050 ~50 5.5 0.75 0.2 8.1/7.1 3.6/2.6 2.5/2.1 200 200 150
DAF-060 ~60 7.5 1.5 0.2 9.5/8.4 3.8/2.8 2.5/2.1 250 250 150
DAF-070 ~70 7.5 1.5 0.2 10.0/9.0 3.8/2.8 2.5/2.1 250 250 150
DAF-080 ~80 11 1.5 0.2 10.5/9.5 4.0/3.0 2.5/2.1 250 250 150
DAF-100 ~100 15 2.2 0.2 11.7/10.6 4.2/3.2 2.5/2.1 300 300 150
DAF-120 ~120 15 2.2 0.2 12.5/11.4 4.4/3.4 2.5/2.1 300 300 150

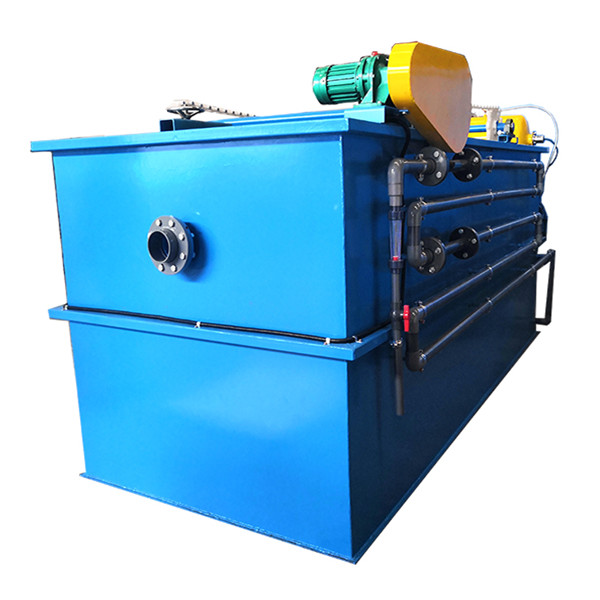

High Efficient DAF Machine Dissolved Air Flotation Wastewater Treatment 0





Product Display

High Efficient DAF Machine Dissolved Air Flotation Wastewater Treatment 1

High Efficient DAF Machine Dissolved Air Flotation Wastewater Treatment 2

Project Cases

High Efficient DAF Machine Dissolved Air Flotation Wastewater Treatment 3

Application in Various Industry

The aim of dissolved air flotation is to separate the fine suspended solids in water, algae and micro-floc. And dissolved air flotation can be used in the following industries:



l Separate or recycle waste oil or grease in : oil exploration and refining, biodiesel, machining , food production and catering and so on.

lHigh concentration organic wastewater treatment: paper, printing and dyeing, textile, leather, pharmaceutical, fermentation wastewater and so on.

lBiochemical effluent liquid separation: the anaerobic effluent solid-liquid separation, aerobic (activated sludge process, contact oxidation, filter) biochemical water solid-liquid separation, the secondary settling tank Effluent treatment and so on.

l Farm and slaughter house wastewater treatment: cattle, pigs, chickens farm, slaughter house wastewater.

l Manufacturing waste: electroplating, painting, etc.

lPurification: river, landscape, recycle water and so on.
