| Place of Origin: | China |
| Brand Name: | Changier |
| Certification: | CE/ISO9001 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 20 days after payment |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 700 Sets Per Day |
| Type Of Pressure: | 150,300,450,600,800,1000,1200SPI | After-sales Service: | Video Service |
|---|---|---|---|
| Connection: | Side Port/End Port | Standard: | JC692-1998 |
| Working Temperature: | -7℃~49℃ | Color: | White/Can Be Customized |
| High Light: | Salt Water Membrane Filter,Reverse Osmosis Membrane Filter,Reverse Osmosis System 4040 Membrane Filter |
||

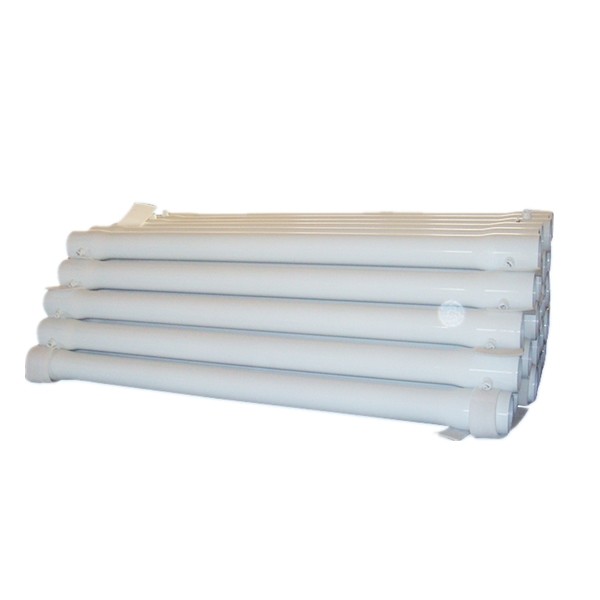

4040 Membrane Salt Water Membrane Filter Reverse Osmosis Membrane Filter
Description
1. High pressure:300-1200PSI;
2. Size: 4'', 8''; Element: 1-7 Elements;
3. The appearance of color: Standard confirguration of color is white. Colors can be customized according to requirement；
4. Widely used in industry water and sea water；
Technical Requirements
1. The manufacturing method of FRP pressure vessel ( membrane housing) is in accordance with the standard JC692-1998;
2. Design for the pressure of the FRP pressure vessel ( membrane housing) is 150,300,450,600,800,1000,1200SPI. And the permitted scope of working temperature is -7℃~49℃.
3. The permeability test of the membrane housing with a way of using water pressure. The test pressure is 1.5 times of the standard pressure.
membrane filter press vontron ro membrane frp membrane housing
ro vontron membrane lp21-4040
4" FRP membrane housing
FRP twisted case, durable The option of thread connection at water outlet: 1/2" 3/4" Thread connection at fresh water outlet: 1/2"female thread SS316L halfmoon locking plate: easy operation, safety and reliability subassembly at head kind of pressure: 300,450,1000PSI length type: 1,2,3,4 core The design of head connection directly will reduce the quantity of joint used for the connection of filtering film.
8" FRP membrane housing
The integrated locking ring thrust ring can reduce pressure drop at high-speed flow rate. Its cone design can guarantee high compression resistance property. The maximum may reach to 205kgf/cm2. The surface is polyurethane coating. It can protect that the membrane housing cannot be suffered from environmental damage and assure its beautiful and taste appearance. The standard color is white. Other color may also be provided.
ppliance: This series of FRP vessel is mainly applied to DOW,GE,Koch, Hydranautics,embrane.
