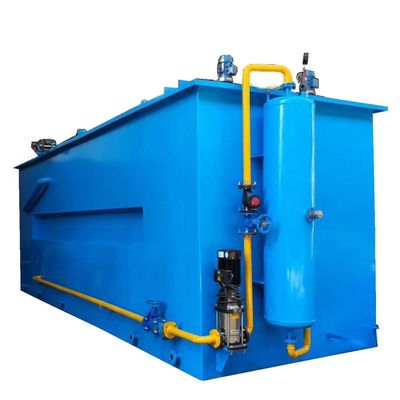

High Hydraulic Load DAF Dissolved Air Flotation System For Sewage Treatment

High Hydraulic Load DAF Dissolved Air Flotation System For Sewage Treatment

High Hydraulic Load DAF Dissolved Air Flotation System For Sewage Treatment
video
High Hydraulic Load DAF Dissolved Air Flotation System For Sewage Treatment
Product Details:
Place of Origin: China
Brand Name: Changier
Certification: CE/ISO9001
Model Number: DAF-01
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Cases
Delivery Time: Depend on the order
Payment Terms: T/T, L/C,
Supply Ability: 10 Sets Per Month
Contact Now
Detailed Product Description
Application: Waste Water Treatment Product Name: Dissolved Air Flotation
Material: Carbon Steel Or Stainless Steel Certification: ISO 9000, CE Certificate
Operation: 24 Hours Automatic Running Warranty: 2 Years
High Light:

daf machine

,

dissolved air flotation unit

High Hydraulic Load DAF Dissolved Air Flotation System For Sewage Treatment



Description



Dissolved air flotation is liquid/solid or liquid/liquid separation process to remove tiny suspended solids that density close to the water, colloid ,oil and grease etc. Our dissolved air flotation is an innovation combined with traditional dissolved air flotation concept and modern technology.











Model

Capacity

Power(kw)

Dimension(m)

Pipe connection(DN)

(m3/h)

Recycle pump

Air compressor

Skimming system

L/L1

W/W1

H/H1

(a) Water inlet

(b) water outlet

(c) sludge outlet

DAF-002

~2

0.75

0.55

0.2

3.2/2.5

2.4/1.16

2.2/1.7

40

40

80

DAF-003

~3

0.75

0.55

0.2

3.5/2.8

2.4/1.16

2.2/1.7

80

80

100

DAF-005

~5

1.1

0.55

0.2

3.8/3.0

2.4/1.16

2.2/1.7

80

80

100

DAF-010

~10

1.5

0.55

0.2

4.5/3.8

2.7/1.36

2.4/1.9

100

100

100

DAF-015

~15

2.2

0.75

0.2

5.5/4.5

2.9/1.6

2.4/1.9

100

100

100

DAF-020

~20

3

0.75

0.2

5.7/4.8

3.2/2.2

2.4/1.9

150

150

150

DAF-030

~30

3

0.75

0.2

6.5/5.5

3.2/2.2

2.5/2.0

150

150

150

DAF-040

~40

5.5

0.75

0.2

7.7/6.7

3.6/2.6

2.5/2.1

200

200

150

DAF-050

~50

5.5

0.75

0.2

8.1/7.1

3.6/2.6

2.5/2.1

200

200

150

DAF-060

~60

7.5

1.5

0.2

9.5/8.4

3.8/2.8

2.5/2.1

250

250

150

DAF-070

~70

7.5

1.5

0.2

10.0/9.0

3.8/2.8

2.5/2.1

250

250

150

DAF-080

~80

11

1.5

0.2

10.5/9.5

4.0/3.0

2.5/2.1

250

250

150

DAF-100

~100

15

2.2

0.2

11.7/10.6

4.2/3.2

2.5/2.1

300

300

150

DAF-120

~120

15

2.2

0.2

12.5/11.4

4.4/3.4

2.5/2.1

300

300

150





Application Industry



The aim of dissolved air flotation is to separate the fine suspended solids in water, algae and micro-floc. And dissolved air flotation can be used in the following industries:

1. Separate or recycle waste oil or grease in : oil exploration and refining, biodiesel, machining , food production and catering and so on.

2. High concentration organic wastewater treatment: paper, printing and dyeing, textile, leather, pharmaceutical, fermentation wastewater and so on.

3. Biochemical effluent liquid separation: the anaerobic effluent solid-liquid separation, aerobic (activated sludge process, contact oxidation, filter) biochemical water solid-liquid separation, the secondary settling tank Effluent treatment and so on.

4. Farm and slaughter house wastewater treatment: cattle, pigs, chickens farm, slaughter house wastewater.

5. Manufacturing waste: electroplating, painting, etc.

6. Purification: river, landscape, recycle water and so on.





Characteristics Advantages

Core Technology of dissolved air flotation for water clarification

1. Micro-bubble generation technology

2. Forth circulation and flocculation technology



Characteristics and Advantages of dissolved air flotation for water clarification

1. Overall specialized, compact structure, and high performance

2. Huge markets ,high maturity, stable performance and reliable operation

3. Hydraulic load: 3 ~ 5 m3 / (m2.h)

4. Maximum inlet SS concentration is ≤ 1000 mg/L

5. Automatic scum discharge, solid content can be up to 30 ~ 100 mg/L

6. Applied for the wastewater with suspended solids & floc density lighter than water or close to the water and weak precipitation phenomenon
