Protect Water Resources For Our Planet

|
| Place of Origin: | China |
| Brand Name: | Changier |
| Certification: | CE/ISO9001 |
| Model Number: | DAF-002 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 6 Weeks |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 Sets Per Year |
| Application: | Waste Water Treatment | Operation: | 24 Hours Automatic Running |
|---|---|---|---|
| Power: | According To Customer's Requirement | Material Of Construction: | Carbon Steel Or Stainless Steel SS304/SS316L. |
| Warrenty: | Over 15 Years | Function: | Solid-liquid Separation |
| High Light: | daf machine,dissolved air flotation unit |
||

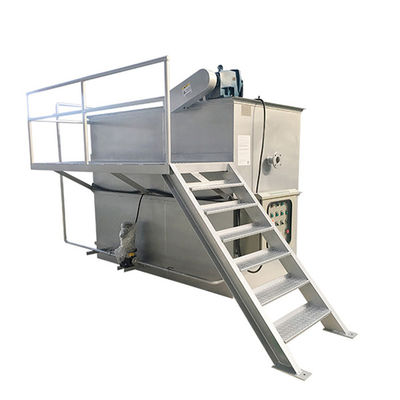

Carbon Steel Dissolved Air Flotation Filtration DAF Equipment Automatic Running
Dissolved air flotation machine (DAF) is manufactured by our factory and mainly used for solid-liquid separation and liquid-liquid separation. A large numbers of fine and uniform bubble (5 ~ 80μm), bubbles, water, floc (oil) three-phase mixture, as a carrier, bubbles mixed with floc particles suspended in the water. Connect, adhesion, form floc with bubbles and float to the liquid surface, scraping scum to achieve separation of impurities, water purification.
Features
1. Small footprint, Low energy consumption; Easy operation; Simple management;
2. Efficient dissolved air; Stable treatment effect ; Full-automatic operation;
3. Dissolved Air Systerm is used in this device. It has ingenious structure, and its efficiency of dissolving air is as high as 90%. But its volume is only one-fifth of the other kind of dissolved air system. In addition, it still has the super anti-clogging ability which is incomparable;
4. Release effect and the mean diameter of microbubble is only between 15 to 30 microns. In addition that,this kind of dissolved air releasers also has the self-cleaning ability;
5. This device also applies Chained Scum Skimmer, works Smooth and reliably and skims scum efficiently.
The air will be send by air compressor into air tank, then take in air dissolved tank by jet flow device, the air will be force to dissolve into water under 0.35Mpa pressure and forming dissolved air water, then send to air flotation tank. Under the circumstance of sudden release, the air dissolved in water will be dissolve out and form vast microbubble group, which will be fully contact the flocculating suspended matter in sewage, the suspended matter was sent by pump and flocculation after adding medicine, the ascending microbubble group will adsorb in the flocculated suspended matter, made its density reduce and floated to water surface, thus reach the purpose of removing SS and CODcr etc.
| Model | Capacity | Power(kw) | Dimension(m) | Pipe connection(DN) | ||||||
| (m3/h) | Recycle pump | Air compressor | Skimming system | L/L1 | W/W1 | H/H1 | (a) Water inlet | (b) water outlet | (c) sludge outlet | |
| DAF-002 | ~2 | 0.75 | 0.55 | 0.2 | 3.2/2.5 | 2.4/1.16 | 2.2/1.7 | 40 | 40 | 80 |
| DAF-003 | ~3 | 0.75 | 0.55 | 0.2 | 3.5/2.8 | 2.4/1.16 | 2.2/1.7 | 80 | 80 | 100 |
| DAF-005 | ~5 | 1.1 | 0.55 | 0.2 | 3.8/3.0 | 2.4/1.16 | 2.2/1.7 | 80 | 80 | 100 |
| DAF-010 | ~10 | 1.5 | 0.55 | 0.2 | 4.5/3.8 | 2.7/1.36 | 2.4/1.9 | 100 | 100 | 100 |
| DAF-015 | ~15 | 2.2 | 0.75 | 0.2 | 5.5/4.5 | 2.9/1.6 | 2.4/1.9 | 100 | 100 | 100 |
| DAF-020 | ~20 | 3 | 0.75 | 0.2 | 5.7/4.8 | 3.2/2.2 | 2.4/1.9 | 150 | 150 | 150 |
| DAF-030 | ~30 | 3 | 0.75 | 0.2 | 6.5/5.5 | 3.2/2.2 | 2.5/2.0 | 150 | 150 | 150 |
| DAF-040 | ~40 | 5.5 | 0.75 | 0.2 | 7.7/6.7 | 3.6/2.6 | 2.5/2.1 | 200 | 200 | 150 |
| DAF-050 | ~50 | 5.5 | 0.75 | 0.2 | 8.1/7.1 | 3.6/2.6 | 2.5/2.1 | 200 | 200 | 150 |
| DAF-060 | ~60 | 7.5 | 1.5 | 0.2 | 9.5/8.4 | 3.8/2.8 | 2.5/2.1 | 250 | 250 | 150 |
| DAF-070 | ~70 | 7.5 | 1.5 | 0.2 | 10.0/9.0 | 3.8/2.8 | 2.5/2.1 | 250 | 250 | 150 |
| DAF-080 | ~80 | 11 | 1.5 | 0.2 | 10.5/9.5 | 4.0/3.0 | 2.5/2.1 | 250 | 250 | 150 |
| DAF-100 | ~100 | 15 | 2.2 | 0.2 | 11.7/10.6 | 4.2/3.2 | 2.5/2.1 | 300 | 300 | 150 |
| DAF-120 | ~120 | 15 | 2.2 | 0.2 | 12.5/11.4 | 4.4/3.4 | 2.5/2.1 | 300 | 300 | 150 |
The aim of dissolved air flotation is to separate the fine suspended solids in water, algae and micro-floc. And dissolved air flotation can be used in the following industries:
l Separate or recycle waste oil or grease in : oil exploration and refining, biodiesel, machining , food production and catering and so on.
lHigh concentration organic wastewater treatment: paper, printing and dyeing, textile, leather, pharmaceutical, fermentation wastewater and so on.
lBiochemical effluent liquid separation: the anaerobic effluent solid-liquid separation, aerobic (activated sludge process, contact oxidation, filter) biochemical water solid-liquid separation, the secondary settling tank Effluent treatment and so on.
l Farm and slaughter house wastewater treatment: cattle, pigs, chickens farm, slaughter house wastewater.
l Manufacturing waste: electroplating, painting, etc.
lPurification: river, landscape, recycle water and so on.
1. How to buy your idea products?
[A] You can provide us your water sources, water quality, flow rate and ground area (contact us for more details).
2. What is your payment terms?
[A] TT and L/C are acceptable and TT will be more appreciated.30% deposit in advance and balance before loading.
3. What is the delivery time?
[A] It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
4. How to pack the products?
[A] We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
5. How to keep your equipments from corrosion?
[A] We use the world-famous paint, like SigmaCoatings,PainBow,etc. What's more, we paint strictly according to the standard process.
6. How do you manufacture your equipment ?
[A] Our machining technology includes laser/plasma cutting, automatic welding,CNC cutting and bending.
7. How to install after the equipments arriving destination?
[A] We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you.
